This is Part I of the C++ Compilation Firewalls series. It explains the stable contract that separates consumer compilation from implementation and the additional runtime dispatch used by virtual interfaces, type erasure, function tables, and dynamically loaded APIs.

A stable binary contract has two complementary meanings:

  1. Stable call contract: the operation keeps a compatible symbol identity, signature, calling convention, ownership model, lifetime rules, and error behavior.
  2. Stable data contract: every type exposed by that operation keeps a compatible size, alignment, and memory layout so both sides interpret the same bytes in the same way.

Together, these rules create the compilation firewall:

stable call contract + stable exposed data layout
                         = compilation firewall

The consumer can compile against that fixed API and ABI without seeing the concrete implementation, its hidden representation, or its private dependencies. An ABI-compatible provider can then change its implementation without requiring consumer recompilation.

PImpl achieves exactly this form of isolation. Its public methods preserve the call contract, while its opaque pointer gives the public facade a fixed layout without exposing the layout of Impl. The facade may forward to Impl using a normal direct call; runtime indirect dispatch is not required.

Virtual interfaces, type erasure, function tables, and dynamically resolved APIs add another mechanism on top of the stable contract: runtime binding and indirect dispatch. Runtime data stores or identifies a target, and fixed dispatch instructions redirect the operation to that target. This makes it possible to select different concrete implementations at runtime while the consumer continues to use the same compiled contract.

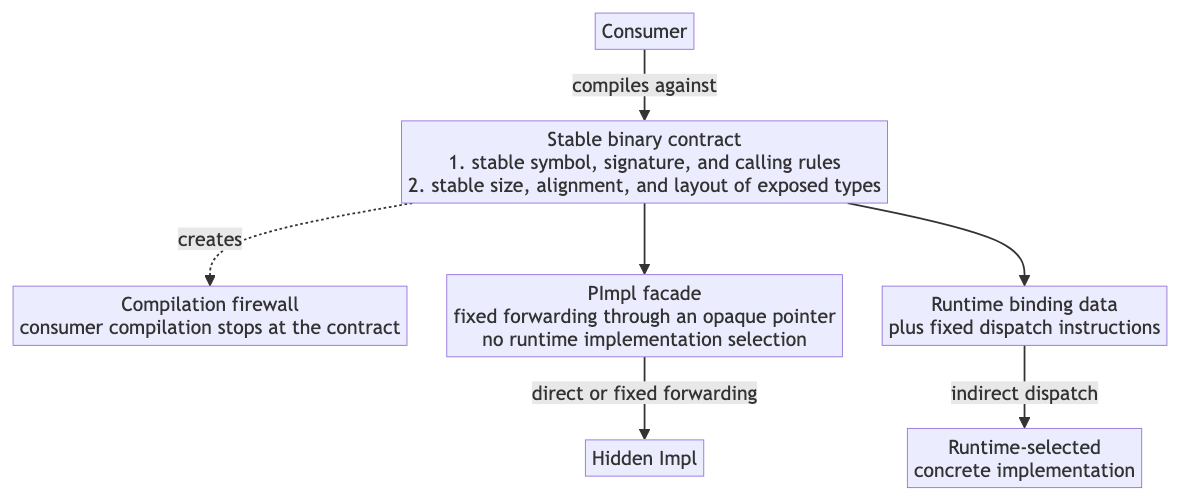

A stable API and ABI create a compilation firewall; runtime-dispatch mechanisms additionally select a concrete implementation through binding data

Runtime dispatch machinery is machine code

Runtime binding and dispatch are executable machinery, not merely an architectural relationship. They associate the common contract with a concrete implementation and make that implementation reachable at runtime.

  • For std::function, the binder is its library implementation together with compiler-generated callable adapters. Construction stores the callable and installs its invoker and lifecycle operations.
  • For dlopen() and dlsym(), the binder is the actual dynamic-loader calls and loader code that resolve and return a runtime implementation address.
  • For virtual functions, the compiler and ABI implicitly generate the binder machinery: vtables, vptr initialization, slot loads, and indirect calls.

This machinery stores an implementation address in runtime data and follows that address during dispatch. The stable contract creates the compilation boundary; runtime binding data adds implementation selection behind it. PImpl needs only the former unless another dispatch mechanism is deliberately added.

Consumer-side instructions, provider-side data

For runtime-selectable implementations, the division is simpler than it first appears:

The consumer contains a fixed sequence of instructions for how to perform the dispatch. The provider supplies runtime data that determines which concrete implementation those instructions reach.

The consumer’s instructions do not name a concrete type or function. They know only the stable layout and calling protocol of an object, erased wrapper, function table, or function pointer. At runtime, the provider passes an instance of that common representation to the consumer. The consumer reads the binding information from it and makes the indirect call:

Consumer machine code                 Provider-supplied runtime data
---------------------                 ------------------------------
fixed dispatch instructions    +      object / wrapper / table / address
knows the common ABI                   contains the selected target
             |                                      |
             +---------- indirect call -------------+
                                |
                                v
                    Concrete implementation

The same fixed instructions can therefore operate on different runtime values without recompiling the consumer:

Mechanism Provider-supplied data that selects the target
Virtual function An object whose vptr selects a vtable and override slot
std::function Erased callable storage plus its type-specific invoker pointer
Function-table API A table populated with the selected implementation’s addresses
dlsym() API A resolved function address selected by library path and symbol name

Ordinary non-virtual PImpl provides a compilation firewall, but it does not provide runtime implementation selection.

Virtual functions

An abstract base class defines the contract. Constructing a concrete derived object binds its virtual-table pointer to the derived class’s virtual table. A virtual call uses the corresponding table entry to reach the concrete override:

interface pointer -> object vptr -> vtable slot -> concrete override

Consumer code compiles against the base interface without knowing the derived type that will be provided at runtime. The construction side knows that concrete type and creates the runtime binding data by initializing the derived object’s vptr. It then passes the object through a base pointer or reference. The consumer operates on that already-bound object and uses its vptr to select the override.

std::function

std::function<R(Args...)> defines the consumer-visible contract. At the construction or assignment site, the binder knows the concrete callable type and installs type-specific invocation and lifecycle operations. Consumer code only invokes the common signature:

erased callable storage -> invoker function -> concrete callable

The translation unit consuming std::function<R(Args...)> can therefore be compiled without knowing the callable type or its implementation. Concrete callable knowledge is confined to the producer or binding side. As with a derived object, construction creates the runtime binding data: the producer stores the concrete callable and installs its type-specific invoker and lifecycle operations inside the std::function object. The consumer receives that already-bound object and invokes it only through R(Args...).

Dynamically loaded APIs

For a dynamically loaded library, the shared header defines a function signature or API-table layout. dlopen() selects and loads a library, while dlsym() resolves a symbol to a runtime function address. Calls then proceed through that address:

library path -> dlopen -> symbol name -> dlsym -> function pointer -> implementation

The client links to the dynamic-loader mechanism and depends on the shared ABI contract, but it has no direct link-time symbol dependency on the selected library implementation. The loaded library may additionally return an abstract interface pointer or function table, producing further indirect dispatch.

PImpl

PImpl defines a public facade while keeping the Impl type incomplete in the public header. Public methods forward operations to the private implementation:

void Component::run()
{
    m_impl->run();
}

From the client’s architectural point of view, Component::run() is the indirection boundary:

client -> Component::run() -> Component::Impl::run()

The client has no source or direct symbol dependency on Component::Impl and can be compiled without its definition. It still links against the public facade library that defines Component::run(). The call from the facade to a non-virtual Impl::run() may be a direct machine instruction, but it occurs behind the compilation firewall and is invisible to the client.

The opaque pointer is also the representation boundary. The client knows the layout of the public Component, including the fixed handle representation, but it never sees the size, alignment, or fields of Component::Impl. Changing Impl therefore does not change the client’s view of Component.

The shared principle and the differences

All these mechanisms isolate consumer compilation through a stable API and ABI, but only some add runtime implementation selection:

Mechanism Stable contract boundary Runtime selection and dispatch
PImpl Public facade symbols plus fixed opaque-pointer layout No; forwarding is normally fixed when the facade library is built
Virtual interface Base-class API and compatible object/vtable ABI Yes; object construction supplies the vptr and vtable
std::function Common R(Args...) invocation contract and wrapper ABI Yes; construction installs the erased invoker
Function-table API Fixed table layout and function signatures Yes; the provider supplies a populated table
dlopen() API Shared function signature or API-table ABI Yes; dlopen() and dlsym() resolve the runtime target

The stable contract is the shared compilation-firewall mechanism. Runtime binding data and indirect dispatch are an additional mechanism used when the same compiled consumer must select among implementations at runtime.

A compilation firewall and a link/load boundary answer different questions. The firewall determines what definitions and private dependencies a consumer translation unit must see. Shared linking determines which binary libraries and symbols must be available when a consumer binary is linked and loaded.

A shared library is already compiled implementation

A shared library is itself the output of compilation and linking. Its machine code, exported symbols, private references, and DT_NEEDED entries are fixed when that library is built. An executable or another shared library that uses it cannot regenerate or specialize that implementation.

Static linking records direct dependencies

Keep compilation and the build-time link step distinct:

compilation:       source + declarations -> object file
static link step:  object files + library metadata -> executable or shared object

The compiler emits object files containing symbol references. The static linker—the build-time link editor—matches the consumer’s direct references against its link inputs and writes the dynamic symbols, relocations, and DT_NEEDED entries needed for runtime. Using a shared-library input does not copy that library’s machine code into the output binary.

For example, a PImpl client may compile without Component::Impl, but it still refers to the public facade and normally records its provider:

app
  undefined: Component::run()
  DT_NEEDED: libcomponent.so

libcomponent.so
  defines:   Component::run()
  may need:  private implementation symbols and libraries

The link editor resolves or records the output’s direct symbol requirements. Whether it also validates undefined symbols already contained in dependent shared libraries—and whether transitive dependencies are copied into the output’s own dependency list—is toolchain- and option-dependent. GNU-style options such as --allow-shlib-undefined, --no-allow-shlib-undefined, and --copy-dt-needed-entries control this validation and propagation. Inspecting a dependency’s symbols does not make them direct undefined references of the consumer; those references remain owned by the shared library that contains them.

Runtime loading follows DT_NEEDED transitively

At startup, the dynamic loader follows the executable’s DT_NEEDED entries and then the DT_NEEDED entries of those libraries. This dependency graph must normally be found and mapped before control enters main():

executable
    -> direct DT_NEEDED libraries
        -> their DT_NEEDED libraries
            -> complete mapped startup dependency graph

Required eager relocations are resolved during loading. Eligible PLT function relocations may instead resolve lazily when first called. Lazy symbol binding postpones lookup of a function address; it does not postpone loading the normally linked DT_NEEDED library that supplies it.

What dlopen() and dlsym() isolate

dlopen() and dlsym() provide stronger build-time and startup dependency isolation. If the client has no ordinary reference to a component API symbol, its executable contains neither an undefined reference to that symbol nor a DT_NEEDED entry for the component library:

executable link:
    resolves dlopen(), dlsym(), and normal client dependencies
    does not inspect or resolve the selected component library

application runtime:
    dlopen(path) invokes the dynamic loader
    the loader maps the component library and its DT_NEEDED closure
    RTLD_NOW resolves required symbols immediately
    RTLD_LAZY may defer eligible function binding
    dlsym(name) returns an entry-point address

Thus dlopen() does not eliminate the static or dynamic linker altogether. The client is still linked normally to the loader API where required, and dlopen() explicitly invokes the runtime dynamic loader. It eliminates the selected component library from the executable’s normal link and startup graph. Loading failure becomes an application-visible result.

Linker checks are not complete ABI checks

Linkers and loaders resolve symbols and validate the metadata required for relocation, but they do not prove that both sides agree on the complete ABI, including calling conventions, type layouts, ownership, and lifetime rules. A matching symbol—or a successful dlsym() lookup—therefore does not guarantee that calling it is ABI-compatible; preserving that contract remains the responsibility of the programmer and build system.

Conclusion

A compilation firewall exposes a stable call contract and stable layouts for the data that crosses it, while keeping concrete implementation knowledge on the provider side. PImpl provides this isolation through a fixed facade and opaque representation without requiring runtime dispatch. Virtual interfaces, type erasure, function tables, and dynamically loaded APIs preserve the same kind of contract while additionally using runtime binding data and indirect dispatch to select a concrete implementation.
