This is Part II of the C++ Compilation Firewalls series and a sequel to Part I: Stable Contracts and Runtime Dispatch. Part I examined the stable API and ABI between a consumer and an implementation. This article asks a practical follow-up question: how much C++ implementation can be moved out of public headers and compiled into a binary library?

The technical rule

A function can be compiled into a binary library when the library compiler has all information required to generate its machine code.

A definition must remain visible to the consumer’s compiler when that compiler must generate a new specialization or perform compile-time evaluation using information supplied by the consumer.

The central cause of this boundary is unknown compile-time information, especially consumer-provided types. If all relevant types and operations are known when the library is built, the implementation can be compiled into the binary. If a future consumer type changes the code that must be generated, the type-dependent definition must remain visible to the consumer. Non-type template arguments and consumer-side constant evaluation follow the same rule, so unknown types are the main case rather than the only case.

Code-generation ownership

The unifying question is:

Who owns the information required to generate this machine code?

Compilation-firewall techniques separate that ownership:

  • PImpl: the library owns the private representation and generates all code that uses Impl; the consumer knows only the public facade.
  • Virtual interface: the caller owns only the abstract contract, while each provider owns and compiles its concrete override.
  • Type erasure: a type-specific adapter maps each concrete T operation to one common function signature. The binary core can therefore express its logic once through that uniform contract instead of generating different logic for every T.
  • Explicit instantiation: the library owns the closed set of supported types and generates their specializations.
  • Public templates: the consumer owns future types, so it must generate the corresponding specializations from visible definitions.
  • dlopen() and dlsym(): the client compiler knows the ABI contract, while runtime loading code supplies the implementation library and symbol address later.

These mechanisms do not eliminate concrete information. They confine it to the side that owns it and replace it across the boundary with a stable contract. Once concrete type knowledge is no longer needed, the remaining implementation can be compiled independently into the binary.

Pushing the boundary toward the consumer

The architectural goal is to keep only the irreducibly type-dependent binding code on the consumer side. Once that code converts the unknown type into a stable contract, the larger type-independent implementation can be generated by the library compiler and stored in the shared library.

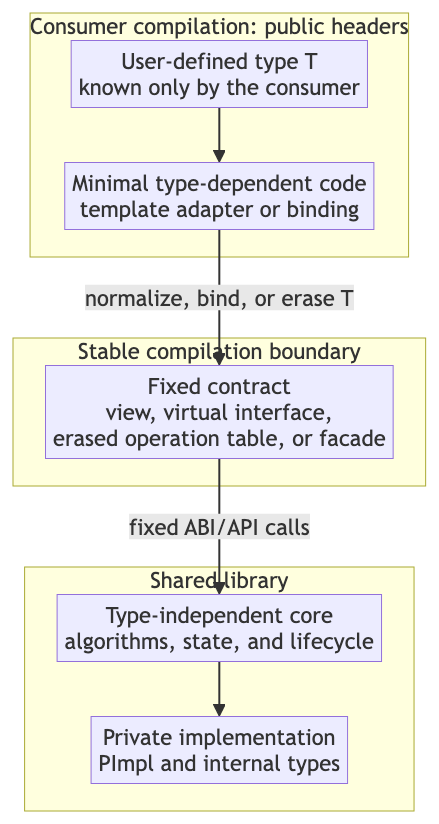

Consumer-owned type-dependent adaptation crosses a stable contract into a type-independent shared-library core

Moving the stable boundary toward the consumer makes the header-side adapter smaller and the precompiled binary region larger. The mechanisms have distinct roles: normalization and type erasure remove the core’s need to know a consumer-provided type; virtual interfaces provide a fixed runtime operation set; PImpl hides library-owned state; and explicit instantiation lets the library own a closed set of specializations.

Code that can be in a binary library

Non-template functions

A non-template function can be compiled separately when its parameter, return, and referenced types are sufficiently defined while building the library:

// Header
Result process(BufferView input);

// Source compiled into the library
Result process(BufferView input)
{
    return processImpl(input);
}

The consumer needs the declaration. It does not need the definition.

Code using runtime-polymorphic types

The concrete runtime type may be unknown. The code can still be precompiled if the compiler knows a fixed interface:

Result process(Input& input);       // Virtual interface
Result process(ErasedInput input);  // Type-erased interface
Result process(InputHandle input);  // Opaque handle

The binary implementation is generated against the known interface. Runtime dispatch selects the concrete operation later.

Templates with a closed instantiation set

Template definitions can be private to the library when the library explicitly instantiates every supported specialization:

// Public declaration
template<class T>
Result process(T);

extern template Result process<int>(int);
extern template Result process<double>(double);

The library defines the template and emits process<int> and process<double>. Consumers cannot instantiate an additional type unless the definition is also made visible.

Internal templates

Templates used only by library source files can remain private. Being a template does not itself require a public header; only consumer-side instantiation does.

Code that must be visible to the consumer

Open template instantiation

If consumers may instantiate a template with arbitrary future types, its definition must normally be reachable at the point of instantiation:

template<class T>
auto process(T&& value)
{
    return value.execute();
}

The library could not precompile process<UserType> before UserType existed.

Type-dependent compile-time operations

A definition must be visible when consumer compilation needs properties such as:

  • sizeof(T) or alignof(T).
  • Construction, destruction, or layout of arbitrary T.
  • Overload resolution and expressions involving arbitrary T.
  • A result type computed from consumer-provided types.
  • Constant evaluation performed in the consumer translation unit.

Inline definitions required in multiple translation units

An inline function may be header-defined even when it is not a template. This is allowed distribution, not proof that the code cannot exist in a binary. If the public API only declares an out-of-line version, that version can instead be compiled into the library.

Moving the technical boundary

Code initially written as a public template may be divided into two parts:

consumer-type-dependent adaptation
                |
                v
fixed representation or operation table
                |
                v
type-independent compiled implementation

Only the first part must remain visible.

Fixed representation

Normalize many input types to one known type:

template<class Range>
Result process(const Range& range)
{
    return processBytes(std::as_bytes(std::span(range)));
}

Result processBytes(std::span<const std::byte> bytes);

The adapter is instantiated by the consumer. processBytes is compiled once in the binary.

In the broad architectural sense, this can be viewed as a special kind of type erasure: representation erasure. Different concrete range types are reduced to the same std::span<const std::byte> boundary type, so they all share the same processBytes implementation. The consumer still instantiates the small process<Range> conversion adapter for each Range, but the library does not instantiate a different main implementation for every source type. This differs from behavioral type erasure, which preserves type-specific behavior through different per-type adapters that all expose the same operation signature.

Virtual interface

A virtual base class gives the binary a known operation set while allowing runtime concrete types:

Result process(Input& input);

Type erasure

Type erasure converts type-specific operations into a common signature. The small adapter still depends on T, but it presents every supported type to the binary core through the same fixed interface:

template<class T>
ErasedInput eraseInput(T&& input);

Result process(ErasedInput input);

The library can therefore compile the main algorithm once against ErasedInput. At runtime, the adapter redirects each uniform operation to the corresponding operation for the stored T. The adapter remains type-dependent; the library’s code logic becomes type-independent.

PImpl

PImpl addresses the opposite direction. It hides library-owned concrete state from the consumer:

consumer knows PublicType
library knows PublicType and PublicType::Impl

Public method definitions and all operations on Impl can be compiled into the binary. PImpl does not erase consumer-provided types and does not by itself move arbitrary public template instantiations into the library.

Conclusion

Know the contract completely; know the consumer’s concrete types as little as possible.

From the library developer’s perspective, the central architectural task is to define a stable API using fixed, library-known boundary types and operations. Consumer-specific representations should be normalized, adapted, erased, or kept behind an interface before control enters the compiled core. PImpl hides library-owned implementation types, while dlopen() and dlsym() can also defer selection of the implementation library until runtime.

The intended dependency direction is:

consumer concrete types -> stable contract <- shared-library implementation

Once the library no longer requires consumer-specific compile-time information, its type-independent algorithms, state, and lifecycle code can be generated by the library compiler and stored in the shared library. Only the irreducibly consumer-type-dependent adapter or specialization must remain visible.
