This article is Part VI of the Python C extension series. Part I — Overview introduced PyCapsule as an opaque handle for C pointers (§2.1). Parts II–V covered execution models, ctypes, and handle pools. Here we apply the same capsule pattern at production scale: how ROS 2 Jazzy generates Python message bindings, the typesupport dispatcher pattern, and how rclpy interacts with message typesupport at publish time.

All paths, filenames, and CMake behavior below come from building ros2_binding_demo on ROS 2 Jazzy (Ubuntu 24.04 Noble, Python 3.12, aarch64).

For the C-side typesupport dispatcher, see Type Erasure Part IV — ROS 2 Message Type System. Part VI walks the Python-specific layers in full detail.

Runnable demo: ros2_binding_demo in the python repository.

source /opt/ros/jazzy/setup.zsh
cd ros2_binding_demo
colcon build --cmake-args \
  -DPython3_EXECUTABLE=$(which python3) \
  -DPYTHON_EXECUTABLE=$(which python3)
source install/setup.zsh
python3 verify_bindings.py
Section Demo folder
§10.1–10.8 ros2_binding_demo — src/demo_pkg/, verify_bindings.py

Section 10: ROS 2 Python Message Bindings

Overview

ROS 2 Jazzy uses a layered architecture for Python bindings, separating pure Python classes, C conversion functions, and typesupport implementations. This section covers the binding architecture, the dispatcher pattern, and how rclpy interacts with message typesupport — using artifacts from a real colcon build of demo_pkg.

All examples use demo_pkg/msg/DemoStatus from the demo workspace — the same package as Type Erasure Part IV.

10.1 Colcon build: Python version on Jazzy

On Jazzy, rosidl_generator_py builds Python bindings through CMake FindPython3 (python3_add_library, PYTHON_INSTALL_DIR under lib/python3.12/site-packages). Pass both cmake hints to the interpreter you will run after source install/setup.*:

colcon build --cmake-args \
  -DPython3_EXECUTABLE=$(which python3) \
  -DPYTHON_EXECUTABLE=$(which python3)

Reminder — two variables, two roles (especially on older ROS 2 such as Humble): Python3_EXECUTABLE picks the install path (lib/python3.X/site-packages); PYTHON_EXECUTABLE picks the extension ABI (headers, linker flags, and on older distros the cpython-* filename suffix). On Jazzy both should still be set to the same binary. If only one is set, install path and extension build can diverge:

Configuration Install path Extension ABI / filename Result
-DPython3_EXECUTABLE=/usr/bin/python3.11 only python3.11/site-packages Built against default python3.10 → cpython-310-*.so Mismatch
-DPYTHON_EXECUTABLE=/usr/bin/python3.11 only Default python3.10/site-packages cpython-311-*.so Mismatch
Both set to the same interpreter Consistent Consistent Correct

After source install/setup.zsh:

python3 --version
# Python 3.12.3

python3 -c "import sysconfig; print(sysconfig.get_config_var('SOABI'))"
# cpython-312-aarch64-linux-gnu

How Jazzy names the built artifacts

python3_add_library builds Layer-3 typesupport wrappers. On our Jazzy build it emits plain .so names (no cpython-* tag in the filename):

set(_target_name "${PROJECT_NAME}_s__${_typesupport_impl}")
python3_add_library(${_target_name} MODULE
  ${_generated_extension_${_typesupport_impl}_files})

Installed result:

install/demo_pkg/lib/python3.12/site-packages/demo_pkg/
  demo_pkg_s__rosidl_typesupport_c.so

Python still imports this as demo_pkg.demo_pkg_s__rosidl_typesupport_c. The internal PyModuleDef name created at runtime is _demo_pkg_support — that string is not the import path.

By contrast, rclpy’s pybind11 module does carry the SOABI tag on Jazzy:

/opt/ros/jazzy/lib/python3.12/site-packages/rclpy/
  _rclpy_pybind11.cpython-312-aarch64-linux-gnu.so

rosidl_generator_py and rclpy therefore use different extension naming conventions on the same distribution. Version isolation for message bindings relies on installing into lib/python3.12/site-packages/ rather than on a cpython-* filename suffix.

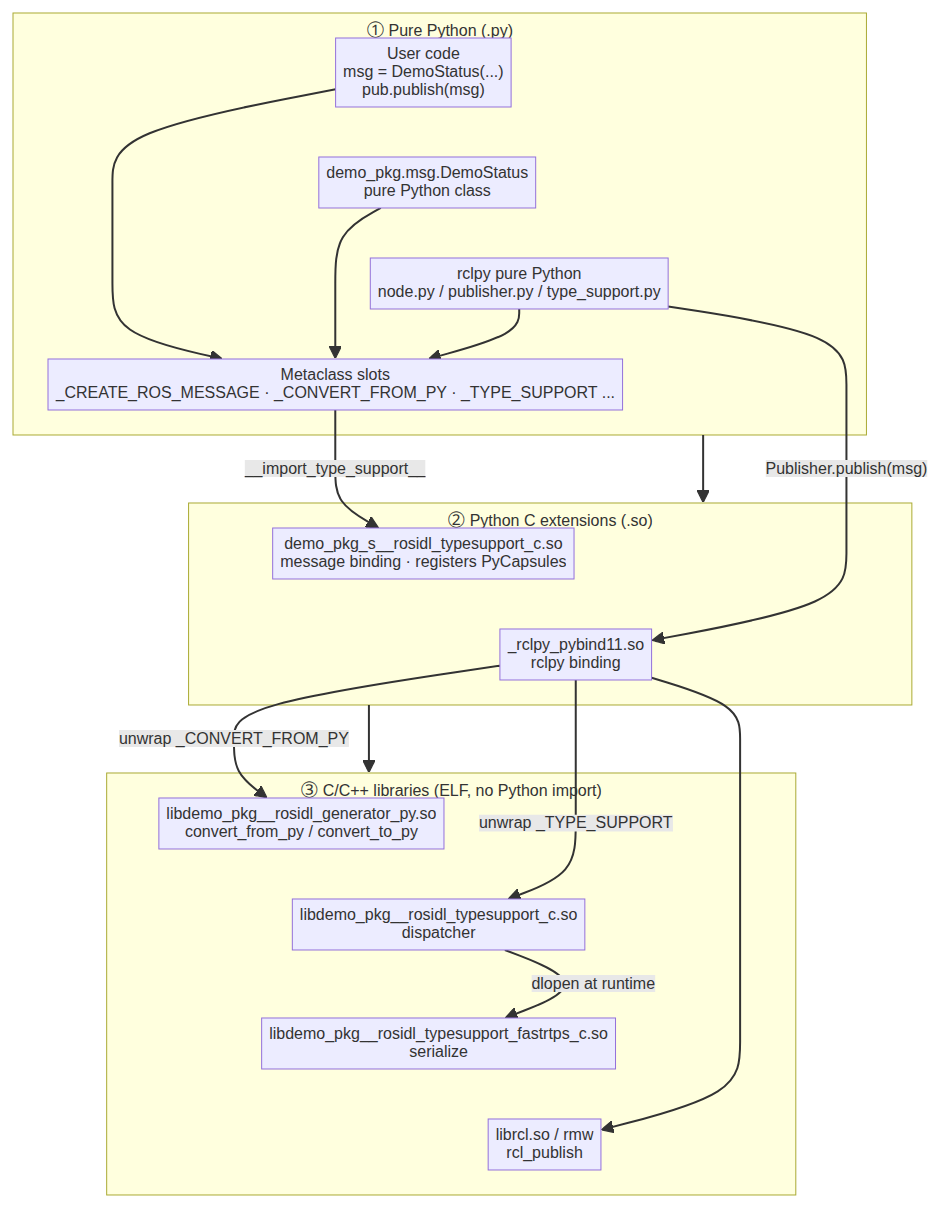

10.2 Three-layer binding architecture

ROS 2 Python message bindings split into three layers.

Layer 1: Pure Python class

File: demo_pkg/msg/_demo_status.py

Purpose:

  • Provides Python class definition (DemoStatus): __repr__, basic operations
  • Metaclass defines __import_type_support__() method

Capabilities:

  • Works without the Layer-3 .so (pure Python fallback)
  • Can create instances and access fields

Limitations:

  • Cannot serialize/deserialize to wire format until __import_type_support__() loads capsules from Layer 3
  • rclpy publish/subscribe paths call check_for_type_support, which triggers import automatically
from demo_pkg.msg import DemoStatus

msg = DemoStatus(name="x", code=1, active=True)
assert DemoStatus.__class__._TYPE_SUPPORT is None  # capsules not loaded yet

Layer 2: C conversion library

File: libdemo_pkg__rosidl_generator_py.so

Characteristics:

  • Pure C shared library (no cpython-* suffix)
  • Not a Python extension — not loaded by import directly
  • Loaded by the Layer-3 Python extension wrapper via ELF DT_NEEDED

Functions:

  • demo_pkg__msg__demo_status__convert_from_py — Python DemoStatus → C struct
  • demo_pkg__msg__demo_status__convert_to_py — C struct → Python DemoStatus

Dependencies:

  • Uses Python.h (PyObject * parameters)
  • Must be compiled for the matching Python version

Layer 3: Python extension wrapper

Three identical wrappers generated:

Source (build tree) Installed under site-packages/demo_pkg/ Imported at runtime?
_demo_pkg_s.ep.rosidl_typesupport_c.c demo_pkg_s__rosidl_typesupport_c.so Yes
_demo_pkg_s.ep.rosidl_typesupport_fastrtps_c.c demo_pkg_s__rosidl_typesupport_fastrtps_c.so No
_demo_pkg_s.ep.rosidl_typesupport_introspection_c.c demo_pkg_s__rosidl_typesupport_introspection_c.so No

import_type_support('demo_pkg') loads only the first file. The import path is demo_pkg.demo_pkg_s__rosidl_typesupport_c; the on-disk name has no cpython-* suffix on Jazzy.

Characteristics:

  • Source code is identical (only PyInit_* function name differs)
  • All three compiled from the same empy template
  • Each links to a different C typesupport library at compile time (plus the dispatcher — see §10.6)
  • Only the typesupport_c binding is imported by Python; the others are build artifacts

Why three wrappers?

  • Build system generates all three from the same template
  • Each links to a different C library → linker resolves ROSIDL_GET_MSG_TYPE_SUPPORT to different symbols at link time
  • Python only needs typesupport_c (dispatcher) because the dispatcher handles runtime loading of FastDDS and introspection libraries
  • fastrtps/introspection wrappers exist but are never imported by import_type_support

Registered capsules (same pattern in all three):

Capsule attribute Contents
create_ros_message_msg__msg__demo_status PyCapsule wrapping function pointer to create C struct
destroy_ros_message_msg__msg__demo_status PyCapsule wrapping function pointer to destroy C struct
convert_from_py_msg__msg__demo_status PyCapsule wrapping Python → C conversion function pointer
convert_to_py_msg__msg__demo_status PyCapsule wrapping C → Python conversion function pointer
type_support_msg__msg__demo_status PyCapsule wrapping typesupport struct pointer (dispatcher for typesupport_c; FastDDS or introspection for the other two wrappers)

Install tree after colcon build on Jazzy (demo_pkg):

install/demo_pkg/lib/
  libdemo_pkg__rosidl_generator_py.so          # Layer 2 — C conversion
  libdemo_pkg__rosidl_typesupport_c.so         # dispatcher
  libdemo_pkg__rosidl_typesupport_fastrtps_c.so
  libdemo_pkg__rosidl_typesupport_introspection_c.so
  libdemo_pkg__rosidl_typesupport_cpp.so       # C++ track (not used by Python)
  libdemo_pkg__rosidl_typesupport_fastrtps_cpp.so
  libdemo_pkg__rosidl_typesupport_introspection_cpp.so
  libdemo_pkg__rosidl_generator_c.so
install/demo_pkg/lib/python3.12/site-packages/demo_pkg/
  demo_pkg_s__rosidl_typesupport_c.so          # Layer 3 — imported by Python
  demo_pkg_s__rosidl_typesupport_fastrtps_c.so # build artifact
  demo_pkg_s__rosidl_typesupport_introspection_c.so
  msg/_demo_status.py                          # Layer 1

10.3 Generated extension wrapper: five-section source structure

The C source for the dispatcher binding is at build/demo_pkg/rosidl_generator_py/demo_pkg/_demo_pkg_s.ep.rosidl_typesupport_c.c. It has five logical sections.

Section 1: Python module definition

The code first defines a Python module structure using the Python C API:

  • PyMethodDef demo_pkg__methods[] — module methods (empty array; no callable methods)
  • PyModuleDef demo_pkg__module — module structure with:
    • Module name: "_demo_pkg_support" (internal name seen by PyModule_Create)
    • Doc string: "_demo_pkg_doc"
    • State: -1 (module keeps state in global variables)
    • Methods: empty array

This structure is used by PyModule_Create() to create the Python module object.

static PyMethodDef demo_pkg__methods[] = {
  {NULL, NULL, 0, NULL}  /* sentinel */
};

static struct PyModuleDef demo_pkg__module = {
  PyModuleDef_HEAD_INIT,
  "_demo_pkg_support",
  "_demo_pkg_doc",
  -1,
  demo_pkg__methods,
  NULL, NULL, NULL, NULL,
};

Section 2: C includes and helper functions

The code includes ROS 2 C headers and defines wrapper functions:

  • rosidl_runtime_c/message_type_support_struct.h — defines rosidl_message_type_support_t
  • demo_pkg/msg/detail/demo_status__struct.h — C struct definition for DemoStatus
  • demo_pkg/msg/detail/demo_status__functions.h — create/destroy functions

Helper wrapper functions:

static void * demo_pkg__msg__demo_status__create_ros_message(void)
{
  return demo_pkg__msg__DemoStatus__create();
}

static void demo_pkg__msg__demo_status__destroy_ros_message(void * raw_ros_message)
{
  demo_pkg__msg__DemoStatus * ros_message = (demo_pkg__msg__DemoStatus *)raw_ros_message;
  demo_pkg__msg__DemoStatus__destroy(ros_message);
}

Why wrapper functions are needed:

  • ROS 2 C functions have specific signatures (DemoStatus__create() returns a typed pointer)
  • Wrappers match the signature expected by rclpy (returns void *, takes void *)
  • These wrappers are wrapped in PyCapsule objects later

Section 3: External imports (symbols resolved by linker)

The code declares external functions — not defined in this file; resolved by the linker:

ROSIDL_GENERATOR_C_IMPORT
bool demo_pkg__msg__demo_status__convert_from_py(PyObject * _pymsg, void * ros_message);

ROSIDL_GENERATOR_C_IMPORT
PyObject * demo_pkg__msg__demo_status__convert_to_py(void * raw_ros_message);

ROSIDL_GENERATOR_C_IMPORT
const rosidl_message_type_support_t *
ROSIDL_GET_MSG_TYPE_SUPPORT(demo_pkg, msg, DemoStatus);
Symbol Imported from
demo_pkg__msg__demo_status__convert_from_py libdemo_pkg__rosidl_generator_py.so
demo_pkg__msg__demo_status__convert_to_py libdemo_pkg__rosidl_generator_py.so
ROSIDL_GET_MSG_TYPE_SUPPORT(demo_pkg, msg, DemoStatus) libdemo_pkg__rosidl_typesupport_*.so (which one depends on link target)

Key insight: The linker resolves ROSIDL_GET_MSG_TYPE_SUPPORT to different functions depending on which C library is linked:

Binding source Primary typesupport link ROSIDL_GET_MSG_TYPE_SUPPORT resolves to
_demo_pkg_s.ep.rosidl_typesupport_c.c libdemo_pkg__rosidl_typesupport_c.so Dispatcher typesupport
_demo_pkg_s.ep.rosidl_typesupport_fastrtps_c.c libdemo_pkg__rosidl_typesupport_fastrtps_c.so FastDDS serialization typesupport
_demo_pkg_s.ep.rosidl_typesupport_introspection_c.c libdemo_pkg__rosidl_typesupport_introspection_c.so Introspection typesupport

On Jazzy, all three wrappers also link libdemo_pkg__rosidl_typesupport_c.so (dispatcher) in addition to their specific typesupport library.

Section 4: Registration function (creates and registers capsules)

_register_msg_type__msg__demo_status(PyObject * pymodule) creates five PyCapsule objects.

For each capsule, the pattern is:

  1. Create capsule with PyCapsule_New((void *)pointer, NULL, NULL)
  2. Add to module with PyModule_AddObject(pymodule, "attribute_name", pyobject)
  3. Error handling: if PyCapsule_New or PyModule_AddObject fails, cleanup and return error
Capsule name on module Wraps Source
create_ros_message_msg__msg__demo_status &demo_pkg__msg__demo_status__create_ros_message Local wrapper function
destroy_ros_message_msg__msg__demo_status &demo_pkg__msg__demo_status__destroy_ros_message Local wrapper function
convert_from_py_msg__msg__demo_status &demo_pkg__msg__demo_status__convert_from_py libdemo_pkg__rosidl_generator_py.so
convert_to_py_msg__msg__demo_status &demo_pkg__msg__demo_status__convert_to_py libdemo_pkg__rosidl_generator_py.so
type_support_msg__msg__demo_status ROSIDL_GET_MSG_TYPE_SUPPORT(...) pointer Linked typesupport library

After registration, Python can access:

module.create_ros_message_msg__msg__demo_status   # PyCapsule
module.destroy_ros_message_msg__msg__demo_status  # PyCapsule
module.convert_from_py_msg__msg__demo_status      # PyCapsule
module.convert_to_py_msg__msg__demo_status        # PyCapsule
module.type_support_msg__msg__demo_status         # PyCapsule

Section 5: PyInit entry point (Python import hook)

PyInit_demo_pkg_s__rosidl_typesupport_c(void) — entry point Python calls on import:

  • PyMODINIT_FUNC — macro marking this as a Python module initialization function
  • PyModule_Create(&demo_pkg__module) — creates module object from module definition
  • _register_msg_type__msg__demo_status(pymodule) — registers capsules for each message
  • return pymodule — returns module to Python

The only difference between the three binding source files is this function name:

  • PyInit_demo_pkg_s__rosidl_typesupport_c(void)
  • PyInit_demo_pkg_s__rosidl_typesupport_fastrtps_c(void)
  • PyInit_demo_pkg_s__rosidl_typesupport_introspection_c(void)

How different bindings get different typesupport

The key is the ROSIDL_GET_MSG_TYPE_SUPPORT macro:

  • The C compiler sees this macro and creates an undefined symbol reference
  • The symbol is not defined in the extension source file
  • The linker must find it in linked libraries

At compile time, CMake links each binding to different C libraries:

foreach(_typesupport_impl ${_typesupport_impls})
  set(_target_name "${PROJECT_NAME}_s__${_typesupport_impl}")
  python3_add_library(${_target_name} MODULE
    ${_generated_extension_${_typesupport_impl}_files})
  target_link_libraries(${_target_name} PRIVATE
    ${_target_name_lib}                                    # lib*_rosidl_generator_py.so
    ${rosidl_generate_interfaces_TARGET}__${_typesupport_impl}  # specific typesupport
    ${c_typesupport_target}                                # dispatcher
    ...
  )
endforeach()

Result: same source code, three compilations, each .so embeds a different typesupport pointer in the type_support_* capsule at link time.

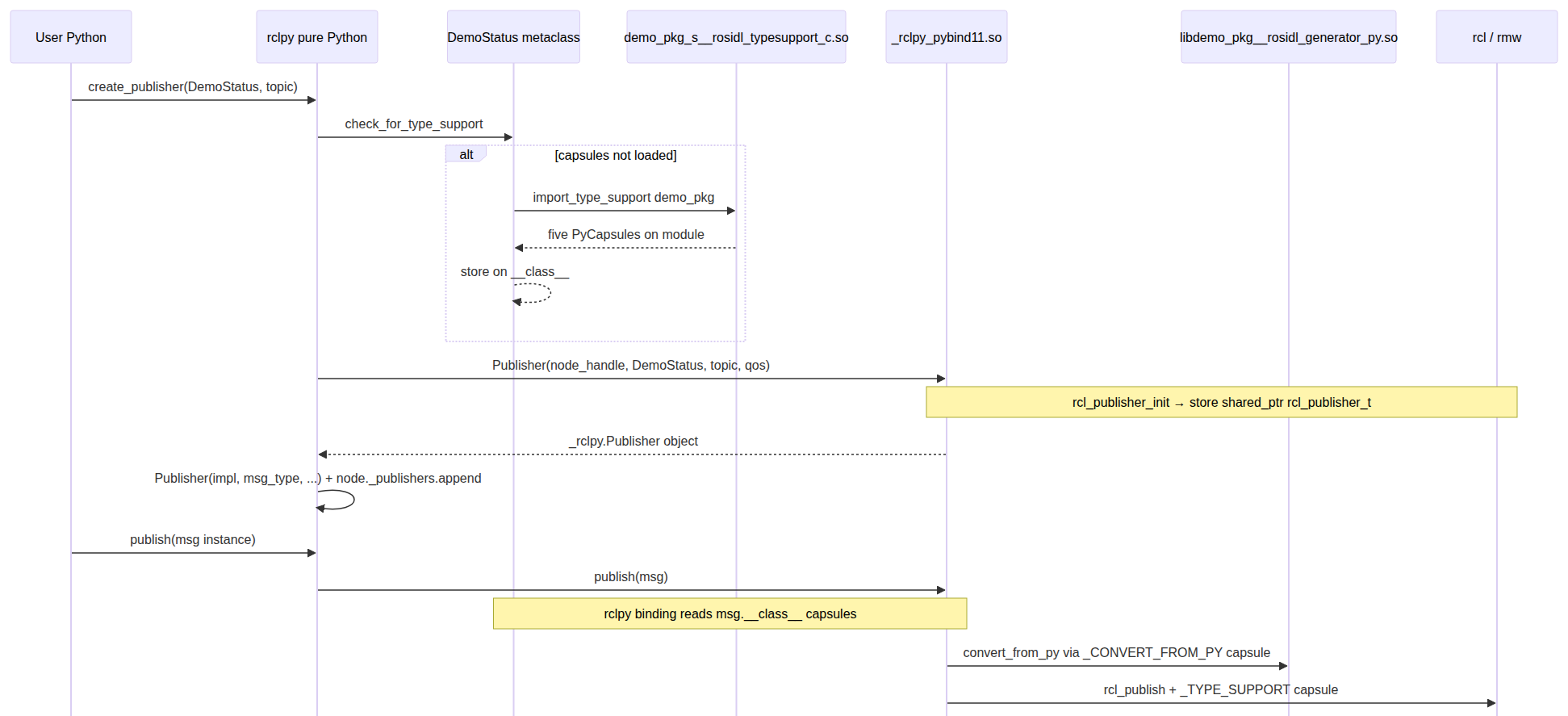

10.4 Import flow when Python loads the typesupport module

  1. Python finds install/demo_pkg/lib/python3.12/site-packages/demo_pkg/demo_pkg_s__rosidl_typesupport_c.so
    • Import machinery resolves the logical name demo_pkg.demo_pkg_s__rosidl_typesupport_c to this file (plain .so suffix is valid on Python 3.12)
    • dlopen loads the shared library
  2. Python finds PyInit_demo_pkg_s__rosidl_typesupport_c symbol
    • This is the entry point defined in Section 5
  3. Python calls PyInit_demo_pkg_s__rosidl_typesupport_c()
    • Creates module object via PyModule_Create
    • Calls _register_msg_type__msg__demo_status (and other messages in the package)
    • Creates five PyCapsule objects per message
    • Adds them as module attributes
    • Returns module object

  4. Python stores module with capsule attributes (all PyCapsule)

  5. Message metaclass stores capsules from module (when __import_type_support__() runs):
DemoStatus.__class__._CREATE_ROS_MESSAGE = module.create_ros_message_msg__msg__demo_status
DemoStatus.__class__._CONVERT_FROM_PY     = module.convert_from_py_msg__msg__demo_status
DemoStatus.__class__._CONVERT_TO_PY       = module.convert_to_py_msg__msg__demo_status
DemoStatus.__class__._TYPE_SUPPORT        = module.type_support_msg__msg__demo_status
DemoStatus.__class__._DESTROY_ROS_MESSAGE = module.destroy_ros_message_msg__msg__demo_status
  1. rclpy uses capsules when publishing:
    • Gets capsules from DemoStatus.__class__
    • Unwraps PyCapsule objects to get C function pointers
    • Calls C functions to convert and publish

Why this generated code is simple:

  • No actual conversion logic — all conversion done by external functions in libdemo_pkg__rosidl_generator_py.so
  • No serialization logic — all serialization done by typesupport library (loaded dynamically by dispatcher)
  • Just a wrapper — wraps existing C pointers in PyCapsule and exposes them to Python
  • One template, three outputs — same code compiled three times, linked to different C libraries

Generated but unused bindings

The build system also generates Python bindings for fastrtps and introspection:

  • demo_pkg_s__rosidl_typesupport_fastrtps_c.so — not used at runtime
  • demo_pkg_s__rosidl_typesupport_introspection_c.so — not used at runtime

These are build artifacts, not runtime dependencies. Python only imports the typesupport_c binding; the dispatcher handles runtime loading of the others.

10.5 Typesupport dispatcher architecture

Dispatcher pattern overview

libdemo_pkg__rosidl_typesupport_c.so is a dispatcher, not a serializer. It dynamically loads fastrtps or introspection C libraries at runtime based on the RMW implementation.

Dispatcher function:

  • rosidl_typesupport_c__get_message_typesupport_handle_function
  • Takes: handle, identifier
  • If identifier matches: return handle directly
  • If different: load from shared library dynamically

How it works:

  1. Check if requested typesupport identifier matches current
  2. If different, use rcpputils::SharedLibrary to load the appropriate .so
  3. Look up the typesupport function symbol in the loaded library
  4. Return the appropriate rosidl_message_type_support_t *

Generated dispatcher code for DemoStatus (build/demo_pkg/rosidl_typesupport_c/.../demo_status__type_support.cpp):

static const type_support_map_t _DemoStatus_message_typesupport_map = {
  2,
  "demo_pkg",
  &_DemoStatus_message_typesupport_ids.typesupport_identifier[0],
  &_DemoStatus_message_typesupport_symbol_names.symbol_name[0],
  &_DemoStatus_message_typesupport_data.data[0],
};

static const rosidl_message_type_support_t _DemoStatus_message_type_support_handle = {
  rosidl_typesupport_c__typesupport_identifier,
  reinterpret_cast<const type_support_map_t *>(&_DemoStatus_message_typesupport_map),
  rosidl_typesupport_c__get_message_typesupport_handle_function,
  ...
};

Type Erasure Part IV walks the full dlopen / dlsym chain.

Library loading chain

Python imports:

  • demo_pkg_s__rosidl_typesupport_c.so — Python extension wrapper (Layer 3)

Links to at compile time:

  • libdemo_pkg__rosidl_generator_py.so — conversion library (convert_from_py, convert_to_py)
  • libdemo_pkg__rosidl_typesupport_c.so — dispatcher library

Dispatcher dynamically loads at runtime:

  • libdemo_pkg__rosidl_typesupport_fastrtps_c.so — FastDDS serialization
  • libdemo_pkg__rosidl_typesupport_introspection_c.so — introspection

Key insight: Python only imports the dispatcher binding. The dispatcher (C code) handles loading of actual serialization libraries at runtime.

Why all three binding source files are identical

The three Python binding source files differ only in PyInit_* function name:

  • _demo_pkg_s.ep.rosidl_typesupport_c.c
  • _demo_pkg_s.ep.rosidl_typesupport_fastrtps_c.c
  • _demo_pkg_s.ep.rosidl_typesupport_introspection_c.c

Why identical? All generated from the same template; same capsule-registration functionality is needed regardless of which typesupport library supplies the type_support_* pointer.

The magic at CMake compile time:

foreach(_typesupport_impl IN ITEMS
    rosidl_typesupport_c
    rosidl_typesupport_fastrtps_c
    rosidl_typesupport_introspection_c)
  target_link_libraries(${target_name}
    ${target_name_lib}              # lib*_rosidl_generator_py.so
    Python3::Python                 # libpython
    ${PROJECT_NAME}__${_typesupport_impl})  # KEY: different C library
endforeach()

Each Python binding links to its typesupport C library and the dispatcher (__rosidl_typesupport_c) per Jazzy’s target_link_libraries. The linker resolves ROSIDL_GET_MSG_TYPE_SUPPORT based on the linked libraries.

10.6 Two bindings cooperating: demo_pkg + rclpy

Publishing a message touches two independent Python binding stacks. They are built separately, loaded separately, and meet only through PyCapsule handles on the message class:

Binding Package Purpose Python side Native side
Message binding demo_pkg (per interface package) DemoStatus wire format: field marshalling, typesupport capsules _demo_status.py, metaclass __import_type_support__ demo_pkg_s__rosidl_typesupport_c.so → libdemo_pkg__rosidl_generator_py.so, dispatcher .so
Client library binding rclpy (single install) ROS node API: publishers, rcl_publish, QoS node.py, publisher.py, type_support.py _rclpy_pybind11.cpython-312-aarch64-linux-gnu.so → rcl / rmw

rclpy does not embed message conversion logic. It calls into the message binding at publish time by reading capsules that demo_pkg registered on DemoStatus.__class__.

Architecture: Python world vs C/C++ world

ROS 2 message and rclpy bindings — Python world vs C/C++ world

Each numbered band is a strict top-to-bottom tier: pure Python at the top, Python C extensions in the middle, native C/C++ libraries at the bottom. Cross-tier arrows only point downward; capsule registration is noted on the message-binding module instead of drawing an upward edge back to the metaclass.

Publish flow (where the two bindings meet)

ROS 2 publish flow — where demo_pkg message binding meets rclpy

10.7 Runnable verification

verify_bindings.py checks twenty claims against the Jazzy-built workspace:

  • Layer 2 .so under lib/ has no cpython-* suffix; Layer 3 installs three plain .so wrappers under lib/python3.12/site-packages/demo_pkg/
  • Pure Python instance construction with _TYPE_SUPPORT is None
  • import_type_support loads only demo_pkg_s__rosidl_typesupport_c.so
  • __import_type_support__ fills five PyCapsule slots on the metaclass
  • Generated C source contains PyModuleDef, register function, and PyInit_demo_pkg_s__rosidl_typesupport_c
  • Dispatcher source contains type_support_map_t and the runtime resolver
  • nm -D on the wrapper shows dispatcher and PyInit symbols
  • rclpy publisher end-to-end publish succeeds
source /opt/ros/jazzy/setup.zsh
source install/setup.zsh
python3 verify_bindings.py

Expected: 20 passed, 0 failed.

10.8 Jazzy artifact reference

Quick lookup for the names used throughout this article (from ros2_binding_demo built on Jazzy, Python 3.12, aarch64):

Role Path or symbol
Layer 1 pure Python install/.../site-packages/demo_pkg/msg/_demo_status.py
Layer 2 conversion lib install/demo_pkg/lib/libdemo_pkg__rosidl_generator_py.so
Layer 3 extension (used) install/.../site-packages/demo_pkg/demo_pkg_s__rosidl_typesupport_c.so
Layer 3 extensions (unused) demo_pkg_s__rosidl_typesupport_fastrtps_c.so, ..._introspection_c.so
Dispatcher lib install/demo_pkg/lib/libdemo_pkg__rosidl_typesupport_c.so
Generated C source build/demo_pkg/rosidl_generator_py/demo_pkg/_demo_pkg_s.ep.rosidl_typesupport_c.c
PyInit symbol PyInit_demo_pkg_s__rosidl_typesupport_c
Import path demo_pkg.demo_pkg_s__rosidl_typesupport_c
PyModuleDef name _demo_pkg_support
rclpy C extension _rclpy_pybind11.cpython-312-aarch64-linux-gnu.so
Build interpreter SOABI cpython-312-aarch64-linux-gnu (from sysconfig; not in rosidl Layer-3 filename)

Python extension suffix search order on the build interpreter:

importlib.machinery.EXTENSION_SUFFIXES
# ['.cpython-312-aarch64-linux-gnu.so', '.abi3.so', '.so']

rosidl_generator_py typesupport modules install as plain .so under lib/python3.12/site-packages/; Python loads them via the .so fallback entry. rclpy’s pybind11 module uses the tagged cpython-312-aarch64-linux-gnu suffix. Both are compiled against the same system Python — the difference is filename convention only.
