This article is Part VII of the Python C extension series. Part I — Overview covers hand-written extension functions and PyTypeObject binding. Part II — Execution covers bytecode, tp_call, and C method dispatch. Part III — ctypes and CFFI covers runtime FFI through _ctypes and libffi. Part IV — Complex ctypes Structs and Handles covers struct mirroring and keepalive. Part V — ctypes Handle Pool covers C++ behind a C ABI and integer handles. Part VI — ROS 2 Message Bindings applies capsule bindings at production scale; it already mentions _rclpy_pybind11 as a real pybind11 module. Part VIII — Extensions vs Bindings is the conceptual capstone for the series.

Part VII covers pybind11: how it works internally, how binding code accepts and returns Python objects at the C++ level, how it compares to hand-written C API code (Part I), and how it differs from ctypes on the compile-time vs runtime axis.

Runnable demo: c_ext_pybind11_config in the python repository — a pybind11 reimplementation of Part I’s c_ext_config_basic Config type, plus inspect(py::object) and summarize() returning a Python dict.

pip install pybind11
cd c_ext_pybind11_config
python3 setup.py build_ext --inplace
python3 test_pybind11_config.py
Section Demo folder
§11.2–11.7 c_ext_pybind11_config — config.hpp, bindings.cpp, test_pybind11_config.py
§11.7 contrast (hand-written) c_ext_config_basic (Part I §2.2.2)
§11.9 contrast (ctypes) c_ext_ctypes_add (Part III §7.2)
§11.9 contrast (ctypes struct) ctypes_complex_struct (Part IV)
§11.1 forward link ros2_binding_demo — _rclpy_pybind11 (Part VI)

Section 11: pybind11 — Compile-Time C++ Bindings

11.1 Position in the Series

The series so far covers two opposite poles:

  • Part I (hand-written C API): full Python integration — real PyTypeObject, attributes, isinstance, exceptions — but ~100 lines of boilerplate per simple type.
  • Parts III–V (ctypes): stdlib Python glue, no per-library PyInit_*, but runtime libffi dispatch, manual struct layout mirroring, and awkward C++ (Part V’s handle pool exists precisely because ctypes cannot speak C++ classes natively).

pybind11 sits between them on the integration axis and beside Part I on the mechanism axis:

Axis ctypes (Parts III–V) pybind11 (Part VII) Hand-written C API (Part I)
When binding is resolved runtime (libffi + Python metadata) compile time (C++ templates) compile time (your C code)
User binding code language Python C++ C
Bridge you import pre-built _ctypes (stdlib) your mymodule.cpython-….so your mymodule.cpython-….so
PyTypeObject / attributes poor fit full (generated) full (hand-written)

Part VI showed _rclpy_pybind11.cpython-312-aarch64-linux-gnu.so — production proof that pybind11 modules are first-class C extensions with SOABI-tagged filenames, same as Part I’s hand-written modules.

11.2 What pybind11 Is (and Is Not)

pybind11 is a header-only C++11 library. You #include <pybind11/pybind11.h>, write binding code in C++, and compile it into a shared library that Python imports. There is:

  • No separate pybind11 runtime .so to link against (only libpython).
  • No code generator step (contrast CFFI API mode in Part III, which emits C and compiles it).
  • No pure-Python binding path (contrast ctypes, where user code stays in Python and calls the ready-made _ctypes extension).

Minimal binding for the demo Config type:

#include <pybind11/pybind11.h>
namespace py = pybind11;

PYBIND11_MODULE(mymodule, m) {
    py::class_<Config>(m, "Config")
        .def(py::init<int, const std::string&, bool>(),
             py::arg("timeout") = 0, py::arg("url") = "", py::arg("ssl") = false)
        .def_readwrite("timeout", &Config::timeout)
        .def_property("server_url",
            [](const Config &c) { return c.server_url; },
            [](Config &c, const std::string &v) { c.server_url = v; })
        .def_readwrite("enable_ssl", &Config::enable_ssl)
        .def("process", &Config::process);
}

Python usage matches Part I exactly:

import mymodule

config = mymodule.Config(timeout=30, url="http://server.com", ssl=True)
config.timeout = 60
assert config.process() == 120
assert isinstance(config, mymodule.Config)

11.3 Internal Architecture — Compile Time, Import Time, Call Time

pybind11 is not a parallel object model. It generates the same CPython machinery Part I builds by hand — PyInit_*, PyTypeObject, method wrappers, argument parsing — using C++ templates at compile time and registration calls at import time.

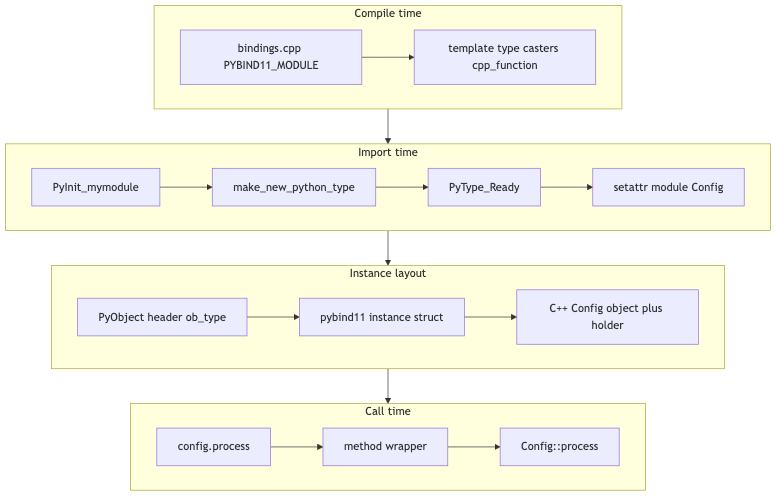

pybind11 internal flow from PYBIND11_MODULE through make_new_python_type to C++ call

Compile time

When you write m.def("add", &add) or py::class_<Config>(...), the compiler instantiates template code in pybind11 headers (cpp_function, class_, type casters). Each C++ signature yields concrete wrappers that know how to:

  • parse PyObject* arguments into C++ types;
  • call your function or method;
  • convert the return value back to PyObject*.

Function signatures for help() are precomputed with constexpr where possible — one reason pybind11 binaries are smaller than Boost.Python’s.

Import time

PYBIND11_MODULE(mymodule, m) expands to a standard PyInit_mymodule entry point (Python 3). When Python runs import mymodule:

  1. PyInit_mymodule runs.
  2. py::class_<Config> calls make_new_python_type (in pybind11/detail/class.h): allocates a PyHeapTypeObject, sets tp_name, tp_base → internal pybind11_object, tp_basicsize = sizeof(instance), calls PyType_Ready, registers the type on the module with setattr.
  3. m.def(...) registers free functions as descriptors on the module dict.

This is the same registration sequence as Part I’s PyType_Ready(&ConfigType) + PyModule_AddObject(m, "Config", ...), but generated from declarative C++.

Call time

When Python calls config.process():

  1. Attribute lookup finds a bound method descriptor (pybind11’s cpp_function wrapper).
  2. The wrapper extracts the C++ Config from the pybind11 instance layout inside the Python object.
  3. It calls Config::process() directly — no libffi (contrast Part III’s ctypes path in python_c_ext_ctypes_call_flow.png).

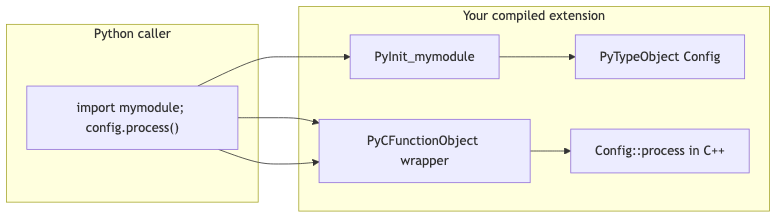

pybind11 call flow: import mymodule then direct C++ call, no libffi

Layer pybind11 Raw C API (Part I)
Module entry PYBIND11_MODULE → PyInit_* PyModuleDef, PyModule_Create
Free functions m.def → cpp_function PyMethodDef, PyArg_ParseTuple
Classes py::class_<T> → make_new_python_type static PyTypeObject, PyType_Ready
Instances instance struct: C++ object + holder in tp_basicsize buffer custom ConfigObject with PyObject_HEAD
Base infrastructure internal pybind11_object supplies tp_new, tp_dealloc you write Config_new, Config_dealloc
Methods / properties descriptors on type __dict__ tp_methods, tp_getset

The runtime picture is the same as Part I’s python_c_ext_object_type_pairing.png: mymodule.Config is a real PyTypeObject; each instance has ob_type pointing at it; isinstance(config, mymodule.Config) works through the normal CPython type machinery.

11.4 py::class_ and PyTypeObject Generation

Part I §2.2.2 defines ConfigObject and a static ConfigType with explicit slots:

typedef struct {
    PyObject_HEAD
    int timeout;
    PyObject *server_url;
    bool enable_ssl;
} ConfigObject;

static PyTypeObject ConfigType = {
    PyVarObject_HEAD_INIT(NULL, 0)
    .tp_name = "mymodule.Config",
    .tp_basicsize = sizeof(ConfigObject),
    .tp_new = Config_new,
    .tp_init = (initproc)Config_init,
    .tp_dealloc = (destructor)Config_dealloc,
    .tp_getset = Config_getsetters,
    .tp_methods = Config_methods,
};

pybind11’s equivalent in bindings.cpp is ~15 lines of py::class_<Config> (see §11.2). Under the hood, make_new_python_type:

  1. Allocates a PyHeapTypeObject.
  2. Sets type->tp_name to the fully qualified name (e.g. mymodule.Config).
  3. Sets type->tp_base to pybind11_object — an internal base type that already implements generic tp_new (pybind11_object_new → tp_alloc + allocate holder layout) and tp_dealloc.
  4. Sets type->tp_basicsize = sizeof(instance) where instance is pybind11’s internal struct wrapping the C++ object.
  5. Calls PyType_Ready(type) and setattr(module, "Config", type).

Two-phase construction (same model as Part II §5 for any Python class):

Phase Slot / method pybind11 Part I
Allocate shell tp_new pybind11_object_new Config_new
Construct payload tp_init / __init__ py::init<...> wrapper Config_init

py::init<int, const std::string&, bool>() registers an __init__ that placement-new’s a C++ Config into the instance holder. Omitting py::init leaves the default pybind11_object_init, which raises TypeError: No constructor defined!.

11.5 Type Casters — Crossing the Boundary

pybind11 moves data across the Python/C++ boundary through type casters — template specializations selected at compile time from C++ type information.

Three interaction modes (see cast overview):

Mode C++ side Python side What happens
Wrapper over C++ Native Config Python proxy Zero-copy: Python holds a shell around the real C++ instance (py::class_)
Wrapper over Python py::dict, py::list Native object Python object referenced, not copied
Conversion std::vector<int> list Data copied both ways

Contrast Part IV’s ctypes struct mirroring: ctypes requires you to describe C layout with _fields_ and manually match sizeof/offsetof. pybind11 never exposes C++ memory layout to Python — integration is through generated wrappers and casters, not byte-level struct equivalence.

Built-in casters cover scalars, strings, STL containers (#include <pybind11/stl.h>), chrono, Eigen, NumPy, and more. Custom types use py::class_ or a custom type caster specialization.

11.6 Accepting and Returning Python Objects in User Code

Binding code is C++, but you often need to accept arbitrary Python values, return Python collections, or call back into Python. pybind11 wraps PyObject* in RAII types.

Full source: bindings.cpp — inspect() and summarize().

Accept: py::object and typed wrappers

void inspect(py::object obj) {
    if (obj.is_none())
        return;

    if (py::isinstance<py::dict>(obj)) {
        for (auto item : obj.cast<py::dict>())
            /* ... */;
    } else if (py::isinstance<Config>(obj)) {
        const Config &cfg = obj.cast<const Config &>();
        /* ... */
    }
}

Export:

m.def("inspect", &inspect, py::arg("obj"));

mymodule.inspect({"a": 1})
mymodule.inspect(config)
mymodule.inspect(None)
Parameter type Accepts from Python Notes
py::object anything inspect with py::isinstance, cast
const py::dict& dict only implicit check; TypeError if wrong
Config& / const Config& bound Config instance unwraps C++ object from pybind11 shell
py::args, const py::kwargs& *args, **kwargs kwargs must be last parameter

Use py::handle for borrowed short-lived references (no refcount increment); py::object for stored/returned values (RAII, increments refcount). Wrong cast<T>() throws py::cast_error.

Return: Python objects from C++

py::dict summarize(const Config &cfg) {
    py::dict out;
    out["timeout"] = cfg.timeout;
    out["server_url"] = cfg.server_url;
    out["enable_ssl"] = cfg.enable_ssl;
    out["process_result"] = cfg.process();
    return out;   // refcount managed; Python receives a new dict
}

Any py::object subclass (py::dict, py::list, py::str, …) converts to a return value. For bound C++ types, returning Config by value creates or reuses a Python wrapper.

Call Python from C++

py::module_ math = py::module_::import("math");
py::object result = math.attr("sqrt")(py::float_(42));
double x = result.cast<double>();

This uses the same C API operations as Part I (PyImport_ImportModule, attribute lookup, PyObject_Call), wrapped in C++.

11.7 pybind11 vs Hand-Written Python C API

The demo c_ext_pybind11_config exposes the same Python API as Part I c_ext_config_basic. The Python tests are intentionally parallel.

Concern Hand-written C API (Part I) pybind11 (Part VII)
Boilerplate PyTypeObject, getset, methods, module init declarative py::class_, m.def
Type safety C compiler on your structs C++ compiler + templates on signatures
Refcounting manual Py_INCREF / Py_DECREF RAII py::object, py::str, …
Errors PyErr_SetString, return NULL C++ exceptions → Python (optional; py::register_exception)
What you still own all semantics and ownership return value policies, holder types, GIL release (py::gil_scoped_release)
Debug surface your code is what runs generated wrappers (harder to step through in a debugger)
Language C C++ required

Key message: pybind11 is the C API — not a replacement runtime. It generates and wraps the same PyObject*, PyTypeObject, and method machinery Part I writes explicitly. Choose pybind11 when C++ is the implementation language and boilerplate cost dominates; choose hand-written C when you need minimal dependencies, C-only codebases, or maximum control over every slot.

11.8 Execution Path (Part II Tie-In)

Part II showed that config.process() on a hand-written extension resolves to PyCFunctionObject → direct C function pointer — no nested eval loop, no libffi.

pybind11-bound methods follow the same path: the wrapper pybind11 registers is still a PyCFunction-style callable. Contrast Part III:

Call Path
config.process() (Part I or VII) PyCFunctionObject → direct C/C++
lib.add(2, 3) (Part III ctypes) _FuncPtr → _ctypes → libffi → add in libadd.so

Both Part I and Part VII produce mymodule.cpython-<SOABI>.so modules that link against libpython. The difference is how the .so was authored — by hand or via pybind11 templates — not how Python dispatches the call once the module is loaded.

11.9 pybind11 vs ctypes — Compile Time vs Runtime

This is the central architectural split between Part VII and Parts III–V. Part VIII — Extensions vs Bindings §12.7 reframes it: pybind11 is extension authoring (compile-time); ctypes is binding through a bridge (runtime).

Four approaches: ctypes, CFFI, hand-written extension, pybind11

  pybind11 (Part VII) ctypes (Parts III–V)
User binding code C++ (bindings.cpp) Python (_fields_, argtypes, wrapper classes)
Bridge module imported your compiled mymodule.cpython.so pre-built stdlib _ctypes
When signatures are resolved compile time (templates) runtime (libffi + metadata)
Target code C++ compiled into the extension existing plain .so via dlopen
C++ classes native (py::class_, virtual, STL) awkward — Part V handle pool exists as workaround
PyTypeObject / attributes full (generated) poor fit — Part IV mirrors layout only
Rebuild per Python version yes (SOABI tag on your .so) no for _ctypes; struct layout must still match C
Per-call cost direct function pointer libffi dispatch

ctypes model (runtime):

Python user code  →  ctypes (Python)  →  _ctypes (ready-made C ext)  →  libffi  →  dlopen'd libfoo.so

User code is Python. Signatures come from argtypes/restype and _fields_ at call time. The stdlib extension is already compiled.

pybind11 model (compile time):

C++ binding code  →  compiler + pybind11 headers  →  your mymodule.cpython.so  →  direct C++ calls

User code is C++. Signatures are read from C++ types at compile time. You ship a new C extension; there is no pre-built pybind11 module to import for your library.

Part IV’s runtime layout section applies only to ctypes: _ctypes allocates a buffer matching _fields_. pybind11 never requires _fields_ — the C++ object layout stays opaque; Python sees wrappers.

11.10 Comparison Across the Full Series

  Part I C API Part VII pybind11 Part III–IV ctypes Part V handle pool
Token / type model PyTypeObject generated PyTypeObject Structure layout int64_t handle
User glue language C C++ Python Python
Build setup.py + C setup.py/CMake + pybind11 make target .so only make + ctypes
C++ support manual in C first-class via extern "C" shim via extern "C" shim + pool
Complex output return Python objects from C API return py::object / bound types out-param / return-by-value copy out-param, by-value, or handle-return
Callable path direct C direct C++ _ctypes + libffi _ctypes + libffi

When to use pybind11:

  • New or existing C++ codebase.
  • Need Pythonic classes, methods, inheritance, STL, exceptions mapped to Python.
  • Willing to compile and ship a per-Python-version extension module.
  • Alternative to Part I when boilerplate cost is too high but you still need full PyTypeObject integration.

When to stay with ctypes (Parts III–V):

  • Existing plain C shared library, stable C ABI.
  • Stdlib-only integration, no binding compiler for end users.
  • Quick runtime dlopen without rebuilding for each Python minor version.

When to stay with hand-written C API (Part I):

  • C-only codebase, minimal dependencies, or you need explicit control over every tp_* slot and error path.

Part VI’s _rclpy_pybind11 and rosidl plain-.so typesupport modules illustrate both poles in one stack: pybind11 for the ROS client library API; plain shared objects + capsules for message conversion.
