This article is Part V of the Python C extension series. Part I — Overview covers hand-written extensions and PyCapsule opaque handles. Part II — Execution covers bytecode vs C method dispatch. Part III — ctypes and CFFI covers loading plain C libraries through _ctypes and libffi. Part IV — Complex ctypes Structs and Handles covers struct mirroring, keepalive, and the generalized handle idea behind ctypes.Structure. Part VI — ROS 2 Message Bindings applies the capsule pattern to ROS 2 rosidl Python bindings and rclpy.

Part V introduces a layered handle-pool pattern for binding C++ through ctypes: an opaque int64_t handle indexes objects in a central HandlePool, a thin extern "C" bridge exposes stable symbols to _ctypes, and Python wrapper classes mirror each C++ type. The demo also shows four ways to move complex data across the C ABI — struct input, out-parameter output, return-by-value, and handle-return for complex results.

Runnable demo: c_ext_handle_binding in the python repository.

make -C c_ext_handle_binding
python3 c_ext_handle_binding/test_handle_binding.py
Section Demo folder
§9.2–9.11 c_ext_handle_binding — cpp/, python/, test_handle_binding.py
§9.11 contrast (capsule) c_ext_capsule_config (Part I §2.1)
§9.11 contrast (ctypes struct) ctypes_complex_struct (Part IV)

Section 9: ctypes Handle Pool for C++

9.1 Why a Handle Pool Behind ctypes

Part III showed ctypes calling scalar C functions in a plain .so. Part IV showed mirroring C structs with ctypes.Structure, keepalive, and user API classes above internal handles.

Those patterns work well for plain C and transient struct marshalling. They become awkward when:

  • The backing implementation is C++ with classes, virtual destructors, and std::string / containers.
  • You need long-lived objects whose addresses must not cross the ctypes boundary (C++ ABI is not ctypes-safe).
  • Several distinct C++ types share one FFI entry point and must be dispatched safely at runtime.
  • Complex results should outlive a single FFI call without copying large structs on every access.

Part I’s PyCapsule already solves opaque handles — but only inside a hand-written C extension (Python.h, PyInit_*). Part V keeps stdlib-only Python glue (ctypes) while adopting the same idea: an opaque token on the Python side, real object owned elsewhere.

The handle-pool pattern uses an int64_t integer as the token (Wikipedia’s handle model). Value 0 means invalid. The pool maps 1, 2, 3, … to std::unique_ptr<HandleObject> instances. Python never sees C++ pointers.

9.2 Three-Layer Architecture

The demo splits responsibilities into three layers. Each layer has a narrow job; extension means adding types, not rewriting the core.

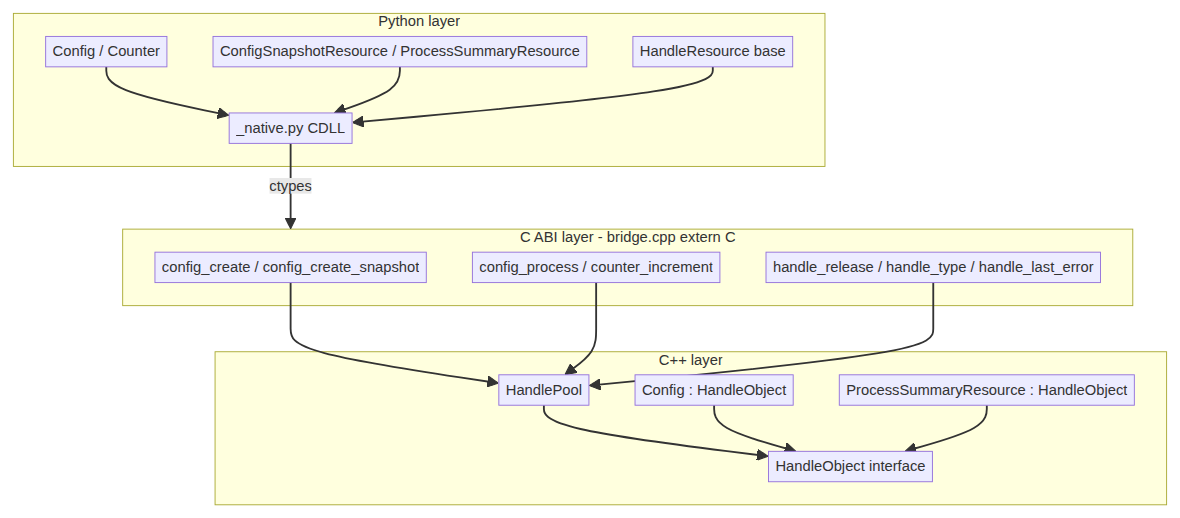

ctypes handle pool three-layer architecture

Layer Location Responsibility
C++ cpp/*.hpp, cpp/*.cpp Business logic, HandleObject interface, HandlePool storage and lifecycle
C ABI cpp/bridge.cpp extern "C" functions only — stable ctypes surface, no Python.h
Python python/*.py CDLL load, argtypes/restype, HandleResource base, per-type wrappers

Directory layout:

c_ext_handle_binding/
├── cpp/
│   ├── types.hpp                  # HandleId, TypeId enum
│   ├── handle_object.hpp          # abstract HandleObject
│   ├── handle_pool.hpp/.cpp       # store / get / release / get_as
│   ├── c_types.h                  # C structs for ctypes (ConfigSpec, …)
│   ├── config.hpp/.cpp            # demo business type 1
│   ├── counter.hpp/.cpp           # demo business type 2
│   ├── *_resource.hpp/.cpp        # complex result types stored as handles
│   └── bridge.cpp                 # extern "C" exports
├── python/
│   ├── _native.py                 # CDLL + signatures + error helpers
│   ├── handle.py                  # HandleResource base
│   ├── types.py                   # ctypes.Structure mirrors
│   ├── config.py, counter.py      # business wrappers
│   └── *_resource.py              # wrappers for handle-returned results
├── Makefile                       # g++ -shared → libhandle_bridge.so
└── test_handle_binding.py

Build produces libhandle_bridge.so — a plain shared library, not a mymodule.cpython-….so C extension. Python loads it with ctypes.CDLL, same class of dynamic linking as Part III §7.2.

9.3 C++ Layer: HandleObject and HandlePool

Full sources: handle_object.hpp, handle_pool.hpp, types.hpp

Every C++ instance managed by the pool implements a minimal abstract interface:

class HandleObject {
public:
    virtual ~HandleObject() = default;
    virtual TypeId type() const = 0;
};

No business logic in the base class — Config::process(), Counter::increment(), and so on stay in concrete types. The base exists so the pool can store heterogeneous objects and delete them through a virtual destructor.

TypeId is an explicit enum (no RTTI across the C ABI):

enum class TypeId : int {
    Config = 1,
    Counter = 2,
    ConfigSnapshot = 3,
    ProcessSummary = 4,
    CounterStats = 5,
};

HandlePool owns all objects:

class HandlePool {
public:
    HandleId store(std::unique_ptr<HandleObject> obj);
    HandleObject* get(HandleId handle);
    bool release(HandleId handle);
    int type_of(HandleId handle) const;

    template <typename T>
    T* get_as(HandleId handle, TypeId expected);
private:
    HandleId next_id_ = 1;
    std::unordered_map<HandleId, std::unique_ptr<HandleObject>> handles_;
};
  • store assigns the next monotonic id (starting at 1), moves the unique_ptr into the map, returns the id.
  • release erases the entry; destroying the unique_ptr runs the concrete destructor.
  • get_as<T> — lookup plus type check (§9.9).

Demo business types: Config (mirrors Part I §2.1 capsule semantics), Counter (simple mutable counter).

Demo result resource types: ConfigSnapshotResource, ProcessSummaryResource, CounterStatsResource — C++ objects that hold complex data and are returned to Python as new handles (§9.8).

A single process-wide pool lives in bridge.cpp (static HandlePool g_pool). ctypes has no pool-handle parameter; one library, one pool. A future extension could pass pool ids if multiple pools are needed.

9.4 C ABI Bridge: extern “C” Without Python.h

Full source: bridge.cpp, c_types.h

ctypes requires C-linkable symbols. The bridge file wraps C++ in extern "C" blocks. C++ classes, templates, and name-mangled symbols never cross the boundary.

Shared pool API:

void        handle_release(int64_t handle);
int         handle_type(int64_t handle);       /* TypeId or -1 */
const char* handle_last_error(void);

Per-type APIs follow a consistent naming pattern: config_create, config_process, counter_create, counter_increment, …

Error model: ctypes cannot raise Python exceptions from C without Python.h. The bridge uses:

  • thread_local std::string g_last_error + handle_last_error()
  • Sentinel returns: 0 for invalid handle, -1 for failed int status

Python checks return values and raises RuntimeError:

def _check_handle(handle: int) -> int:
    if handle == 0:
        raise RuntimeError(_last_error())
    return handle

C structs shared by C and ctypes live in c_types.h with extern "C" guards — plain C layout, no C++ features:

typedef struct ConfigSpec {
    int32_t timeout;
    int32_t enable_ssl;
    char server_url[HANDLE_BRIDGE_URL_MAX];
} ConfigSpec;

9.5 Python Layer: CDLL, HandleResource, Typed Wrappers

Full sources: _native.py, handle.py, config.py

Load the library (path relative to package):

_LIB_PATH = Path(__file__).resolve().parent.parent / "libhandle_bridge.so"
_lib = ctypes.CDLL(str(_LIB_PATH))

Register every symbol (function prototypes):

_lib.config_create.argtypes = [ctypes.c_int, ctypes.c_char_p, ctypes.c_int]
_lib.config_create.restype = ctypes.c_int64

HandleResource is the base class every wrapper inherits:

class HandleResource:
    def __init__(self, handle: int) -> None:
        if handle == 0:
            raise ValueError("invalid handle")
        self._handle = handle
        self._closed = False

    def close(self) -> None:
        if self._closed or self._handle == 0:
            return
        _lib.handle_release(self._handle)
        self._handle = 0
        self._closed = True

    def __enter__(self): return self
    def __exit__(self, *args): self.close()
    def __del__(self): self.close()

Typed wrappers (Config, Counter, …) expose classmethod create(...) factories that call the C create function, check the handle, and return cls(handle). Methods pass self.handle into C operation functions.

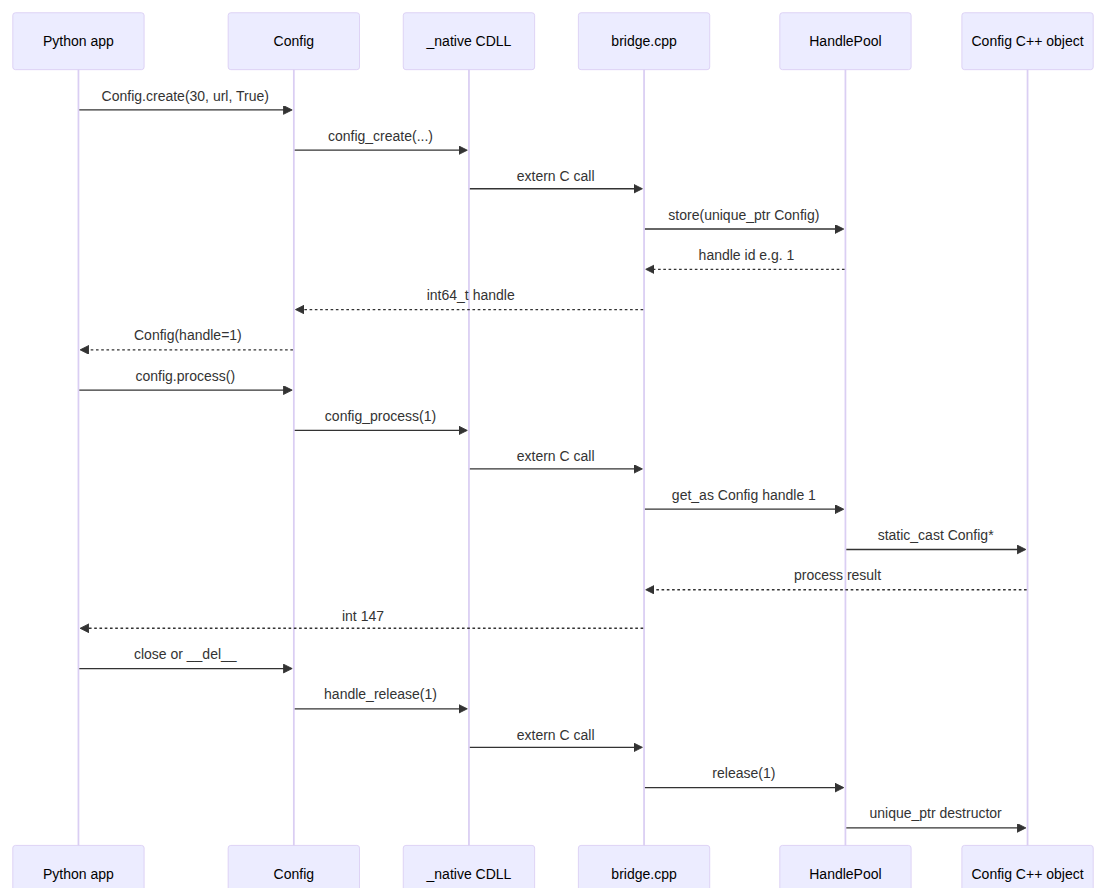

handle pool create operate release lifecycle

9.6 Complex Types as Input (Accept Structs)

Part IV focused on passing structs into C. The handle-pool demo uses the same ctypes machinery for creation and mutation APIs.

C API Role
config_create_from_spec(const ConfigSpec*) Create Config from struct input
counter_apply_delta(int64_t, const DeltaSpec*) Apply repeated delta from struct
config_spec_merge(left, right, out) Pure C helper — no handle, struct in/out

Python mirrors C structs in types.py:

class ConfigSpec(ctypes.Structure):
    _fields_ = [
        ("timeout", ctypes.c_int32),
        ("enable_ssl", ctypes.c_int32),
        ("server_url", ctypes.c_char * HANDLE_BRIDGE_URL_MAX),
    ]

Factory usage:

spec = make_config_spec(30, "http://server.com", True)
config = Config.create_from_spec(spec)

Pass with byref:

_lib.config_create_from_spec.argtypes = [ctypes.POINTER(ConfigSpec)]
handle = _lib.config_create_from_spec(ctypes.byref(spec))

Embedded char[] fields avoid the keepalive problems of char* in Part IV §8.5 — the struct owns the bytes. Pointer-string patterns from Part IV still apply if you add char* fields later.

9.7 Complex Types as Output — Out-Parameter and Return-by-Value

Two patterns that do not add a new pool entry:

Out-parameter (caller allocates struct, C fills)

int config_get_snapshot(int64_t handle, ConfigSnapshot* out);

Python allocates ConfigSnapshot() on the stack, passes ctypes.byref(out), reads fields into a view dataclass:

def snapshot(self) -> ConfigSnapshotView:
    out = ConfigSnapshot()
    _check_status(_lib.config_get_snapshot(self.handle, ctypes.byref(out)))
    return snapshot_to_view(out)

Lifetime: the output exists only in Python for that call. No handle is returned.

Return-by-value (C returns struct copy)

ProcessSummary config_process_summary(int64_t handle);

ctypes copies the struct across the FFI boundary when restype is set:

_lib.config_process_summary.argtypes = [ctypes.c_int64]
_lib.config_process_summary.restype = ProcessSummary

summary = _lib.config_process_summary(self.handle)

This works for small POD structs. Large or heap-backed results are a poor fit — every read pays a full copy, and pointer fields inside the struct reintroduce Part IV ownership issues.

9.8 Complex Types as Output — Handle-Return Pattern

The third output pattern stores the result as a new HandleObject in the pool and returns its integer handle. Python constructs a dedicated wrapper class from that handle.

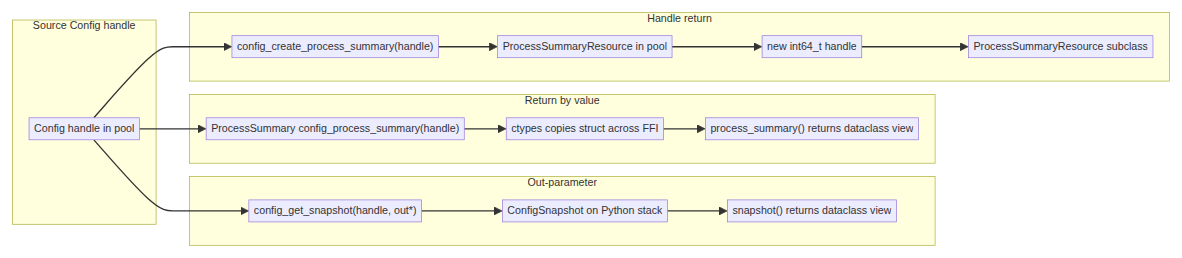

three complex return patterns compared

  Out-parameter Return-by-value Handle-return
C returns int status; fills *out ProcessSummary struct int64_t new handle
Python gets dataclass view dataclass view ProcessSummaryResource(handle)
C++ lifetime no pool entry copy at FFI boundary pool owns until handle_release
Best for small snapshots small POD reads results you query repeatedly; C++-backed state

9.9 Type Safety: TypeId and get_as

Every operation that dereferences a handle must validate existence and type. Wrong-type handles are a common FFI bug (passing a Config handle where Counter is expected).

HandlePool::get_as centralizes the check:

template <typename T>
T* get_as(HandleId handle, TypeId expected) {
    HandleObject* obj = get(handle);
    if (obj == nullptr || obj->type() != expected) {
        return nullptr;
    }
    return static_cast<T*>(obj);
}

Each concrete class implements type():

TypeId Config::type() const { return TypeId::Config; }

Bridge functions use one error path:

Config* config = g_pool.get_as<Config>(handle, TypeId::Config);
if (config == nullptr) {
    set_error("invalid handle or wrong type");
    return -1;
}

Three failure modes, same message:

  1. Invalid handle — never existed, or already handle_released.
  2. Wrong TypeId — e.g. counter_increment(config_handle, 1) when config_handle points at a Config.
  3. Null out-pointer on read APIs — config_get_snapshot(handle, nullptr).

The test proves cross-type misuse fails:

config = Config.create(30, "http://server.com", True)
result = _lib.counter_increment(config.handle, 1)
assert result == -1
assert b"invalid handle or wrong type" in _lib.handle_last_error()

Design notes:

  • No dynamic_cast / RTTI — the C ABI does not carry C++ type information; TypeId is the explicit contract.
  • static_cast after type() check is safe because only the pool creates objects and each class reports a fixed TypeId.
  • Python can query handle_type(handle) or wrapper.type_id for debugging; wrappers should still rely on typed C APIs, not blind casts.

9.10 Extending the Framework

Adding a new C++ type (e.g. Buffer) without changing HandlePool or HandleResource:

  1. Add TypeId::Buffer in types.hpp.
  2. Implement class Buffer : public HandleObject in new buffer.hpp / buffer.cpp.
  3. Add buffer_create / buffer_* functions in bridge.cpp (or split per-type bridge files as the project grows).
  4. Append sources to Makefile SOURCES.
  5. Register argtypes / restype in _native.py.
  6. Add Buffer(HandleResource) in new buffer.py; export from __init__.py.

For complex results, add a BufferViewResource : HandleObject and buffer_create_view(source_handle) returning a new handle — same handle-return pattern as §9.8.

9.11 Comparison Across the Series

  Part I PyCapsule Part IV ctypes.Structure Part V handle pool
Token capsule object Structure instance int64_t handle
Owner capsule destructor Python GC + keepalive HandlePool + handle_release
Language C struct in C extension plain C .so C++ classes + virtual interface
Python glue Python.h / PyInit_* ctypes only ctypes only
Multi-type dispatch capsule name string N/A (layout only) TypeId + get_as
Complex input PyArg_ParseTuple Structure + byref Structure + byref (same as IV)
Complex output return Python objects from C API out-param / return-by-value copy out-param, by-value, or handle-return
User API module functions InputRecordPy, transform() Config, Counter, *Resource

When to use Part V:

  • Existing or new C++ codebase behind a stable C ABI.
  • You want ctypes-only Python integration (no per-library PyInit_*).
  • Multiple C++ types share one .so and need typed handle dispatch.
  • Complex results should live as pool-managed objects with explicit close() / context managers.

When to prefer Part I instead: tight integration with Python’s object model (PyTypeObject, attributes, exceptions as first-class types).

When to prefer Part IV alone: plain C library, transient struct marshalling, no long-lived C++ objects.
