This article is Part IV of the Python C extension series. Part I — Overview covers hand-written C extensions and binding C data to Python types. Part II — Execution covers bytecode and C method dispatch. Part III — ctypes and CFFI showed calling a plain C library with scalar add(int, int).

Part IV covers how to handle complex C structures with ctypes: nested structs, fixed-size arrays, embedded char[] vs char*, pointer fields, marshalling through _ctypes + libffi, and keepalive for anything whose address crosses the boundary. It closes with handles — internal separation layers between your user API and C-managed resources (Wikipedia: file descriptors, PyCapsule, ctypes.Structure, buffer addresses, …). The demo’s InputRecordPy / OutputRecordPy are user API classes (§8.9), not handles themselves. Struct names in the demo are arbitrary fixtures for the binding patterns.

You still write Python-only glue (no new PyInit_* module); the new work is layout fidelity and lifetime management.

Runnable demo: ctypes_complex_struct in the python repository.

make -C ctypes_complex_struct
python3 ctypes_complex_struct/test_struct_demo.py
Section Demo folder
§8.2–8.11 ctypes_complex_struct — struct_demo.h, bindings.py, test_struct_demo.py

Section 8: ctypes with Complex Structs

8.1 Beyond Scalar Arguments

Part III’s ctypes example calls one function with two integers:

lib.add.argtypes = [ctypes.c_int, ctypes.c_int]
lib.add.restype = ctypes.c_int
assert lib.add(2, 3) == 5

Most real C APIs also use structs: a function takes a pointer to an input struct (and maybe scalars), and returns a struct or fills an output struct. The hard part is not dlopen — Part III already covered that — but expressing the C layout in Python and keeping pointer targets alive across the call.

The demo library exposes one such function so every pattern appears in a single test:

OutputRecord transform_record(
    const InputRecord *input,
    double scale,
    int min_weight,
    int top_n
);

ctypes maps each C struct to a ctypes.Structure subclass. _ctypes passes a pointer to the input through libffi (same machinery as Part III §7.2). That Structure instance is a handle in the broad sense (§8.11): it separates binding code from raw C memory. Application code should sit above that in a user API (§8.9) that owns the handles internally.

8.2 C Layout Patterns in the Demo

Full header: struct_demo.h

The header is intentionally dense: one small nested type, then input/output structs that combine the field kinds you typically mirror in ctypes. Names like Metric or InputRecord are arbitrary; focus on the field kinds:

Pattern Example in header
Nested struct Point anchor inside Metric
Fixed array of structs Metric metrics[MAX_METRICS], Point corners[2]
Fixed array of scalars int weights[MAX_WEIGHTS]
2D embedded char buffers char categories[MAX_TAGS][MAX_LABEL]
Pointer to NUL-terminated string char *description, char *tags[]
Pointer to struct Metric *metric_ptrs[MAX_PTRS]
C-allocated output pointers char *notes, Metric *ranked_ptrs[] in OutputRecord

Nested types and shared caps (must match Python):

#define MAX_METRICS   4
#define MAX_LABEL     32
/* ... */

typedef struct {
    int x;
    int y;
} Point;

typedef struct {
    char  label[MAX_LABEL];
    int   weight;
    Point anchor;
} Metric;

Input struct — embedded arrays plus pointer fields:

typedef struct {
    char   header_id[MAX_LABEL];
    int    version;
    Point  origin;
    Point  corners[2];
    Metric metrics[MAX_METRICS];
    int    weights[MAX_WEIGHTS];
    char   categories[MAX_TAGS][MAX_LABEL];
    char  *description;
    char  *tags[MAX_TAGS];
    int    tag_count;
    Metric *metric_ptrs[MAX_PTRS];
    int    metric_ptr_count;
} InputRecord;

Output struct — same ideas on the return side, including pointers the C function may malloc:

typedef struct {
    char   title[MAX_LABEL];
    Point  bbox[2];
    int    total_weight;
    int    filtered_weights[MAX_WEIGHTS];
    int    filtered_weight_count;
    Metric top_metrics[MAX_PTRS];
    char   summary_lines[MAX_SUMMARY][MAX_LABEL];
    char  *notes;
    Metric *ranked_ptrs[MAX_PTRS];
    int    ranked_ptr_count;
} OutputRecord;

struct_demo.c reads and writes every field category above (embedded arrays, pointer strings, pointer-to-struct arrays, heap output). test_struct_demo.py asserts the round trip. You do not need the business logic — only that the C side touches each pattern so the bindings stay honest.

free_output_record frees heap fields (notes, ranked_ptrs[]) allocated inside transform_record — a second ctypes concern: output ownership (§8.8).

8.3 Mapping C to ctypes.Structure

Full bindings: bindings.py

Rule 1: Python MAX_* constants match the header.

Rule 2: Each ctypes.Structure subclass lists _fields_ in the same order as the C struct. Wrong order or wrong ctypes type corrupts memory or crashes — there is no compile-time check (structure alignment).

Start with leaf structs, then compose:

class Point(ctypes.Structure):
    _fields_ = [
        ("x", ctypes.c_int),
        ("y", ctypes.c_int),
    ]


class Metric(ctypes.Structure):
    _fields_ = [
        ("label", ctypes.c_char * MAX_LABEL),
        ("weight", ctypes.c_int),
        ("anchor", Point),
    ]

InputRecord and OutputRecord in Python mirror the C definitions field-for-field (see Structures and unions):

class InputRecord(ctypes.Structure):
    _fields_ = [
        ("header_id", ctypes.c_char * MAX_LABEL),
        ("version", ctypes.c_int),
        ("origin", Point),
        ("corners", Point * 2),
        ("metrics", Metric * MAX_METRICS),
        ("weights", ctypes.c_int * MAX_WEIGHTS),
        ("categories", (ctypes.c_char * MAX_LABEL) * MAX_TAGS),
        ("description", ctypes.c_char_p),
        ("tags", ctypes.c_char_p * MAX_TAGS),
        ("tag_count", ctypes.c_int),
        ("metric_ptrs", ctypes.POINTER(Metric) * MAX_PTRS),
        ("metric_ptr_count", ctypes.c_int),
    ]

Load the shared library built by make:

_LIB_PATH = Path(__file__).with_name("libstruct_demo.so")
_lib = ctypes.CDLL(str(_LIB_PATH))

8.4 Nested Structs and Fixed Arrays

C pattern ctypes
Point anchor inside Metric ("anchor", Point)
Point corners[2] ("corners", Point * 2)
Metric metrics[MAX_METRICS] ("metrics", Metric * MAX_METRICS)
int weights[MAX_WEIGHTS] ("weights", ctypes.c_int * MAX_WEIGHTS)
char categories[MAX_TAGS][MAX_LABEL] ("categories", (ctypes.c_char * MAX_LABEL) * MAX_TAGS)

Assign nested structs by value:

record.origin = self.origin.to_ctypes()
record.corners[i] = corner.to_ctypes()
record.metrics[i] = metric.to_ctypes()

For a 2D char array slot, direct assignment to categories[i] is awkward; the demo uses from_address on the struct’s memory:

slot = (ctypes.c_char * MAX_LABEL).from_address(
    ctypes.addressof(struct) + field_type.offset + index * MAX_LABEL
)

That writes bytes into the correct offset inside the parent struct without guessing layout beyond what ctypes already knows.

8.5 Strings: Embedded char[] vs char*

Two common C patterns need different ctypes handling:

Embedded buffers (header_id, label, title): field type is c_char * N. Assign UTF-8 bytes (with a length guard):

def _encode_label(value: str) -> bytes:
    encoded = value.encode("utf-8")
    if len(encoded) >= MAX_LABEL:
        raise ValueError(f"label too long (max {MAX_LABEL - 1} bytes): {value!r}")
    return encoded

_write_label_field(record, "header_id", self.header_id)

Pointer strings (description, each tags[i]): C expects char * to NUL-terminated data. Use create_string_buffer and pass the buffer address:

description_buf = ctypes.create_string_buffer(self._description.encode("utf-8"))
record.description = ctypes.c_char_p(ctypes.addressof(description_buf))

Keepalive (critical): anything whose address you pass to C must stay alive until the C call returns. Buffers, c_char_p wrappers, standalone Metric structs, and POINTER(Metric) values are all ordinary Python objects — the GC can collect them if nothing references them.

to_ctypes() returns (record, keepalive):

keepalive: list[object] = []
# ... append description_buf, record.description, tag buffers, metric structs, pointers ...
keepalive.append(record)
return record, keepalive

transform() must hold the list through the call:

c_input, keepalive = input_record.to_ctypes()
_ = keepalive  # must survive through the C call
c_output = _lib.transform_record(ctypes.byref(c_input), ...)

If keepalive is dropped while C still reads those addresses, you get use-after-free — silent corruption or a crash.

8.6 Arrays of Pointers (Metric*)

When C has Metric *metric_ptrs[MAX_PTRS] — an array of pointers to structs, not an embedded array — ctypes uses:

("metric_ptrs", ctypes.POINTER(Metric) * MAX_PTRS),

Build each entry from a standalone struct and a pointer object; keep both:

metric_obj = metric.to_ctypes()
metric_storage.append(metric_obj)
metric_ptr = ctypes.pointer(metric_storage[-1])
record.metric_ptrs[i] = metric_ptr
keepalive.extend([metric_storage[-1], metric_ptr])

Read back through .contents:

MetricPy.from_ctypes(record.metric_ptrs[i].contents)

8.7 Binding the Function

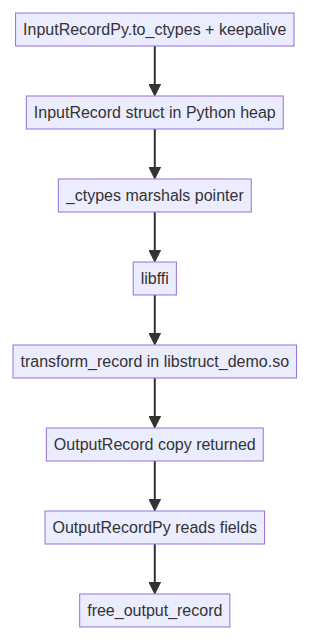

ctypes complex struct call flow

_lib.transform_record.argtypes = [
    ctypes.POINTER(InputRecord),
    ctypes.c_double,
    ctypes.c_int,
    ctypes.c_int,
]
_lib.transform_record.restype = OutputRecord

_lib.free_output_record.argtypes = [ctypes.POINTER(OutputRecord)]
_lib.free_output_record.restype = None

Pass the input with byref (cheaper than pointer() for a one-shot call):

c_output = _lib.transform_record(
    ctypes.byref(c_input),
    ctypes.c_double(scale),
    ctypes.c_int(min_weight),
    ctypes.c_int(top_n),
)

restype = OutputRecord means the C return-by-value struct is copied into a new Python Structure instance. Pointer fields inside that copy (notes, ranked_ptrs[]) still point at C heap memory from the temporary C return value — you must read them before freeing, and you must call free_output_record on the Python copy’s backing layout (see §8.8).

Wrong _fields_ or argtypes still corrupts the stack or misreads memory — same runtime-only safety as Part III §7.2.

8.8 Output Ownership and Cleanup

When C allocates memory reachable through struct pointer fields (strdup, malloc into output.notes, output.ranked_ptrs[i], …), Python must call a matching free function. The demo exposes free_output_record; your real library will have its own name.

Pattern: wrap the returned Structure and call free from close() / __exit__:

def close(self) -> None:
    if self._closed:
        return
    _lib.free_output_record(ctypes.byref(self._record))
    self._closed = True

def __enter__(self) -> OutputRecordPy:
    return self

def __exit__(self, exc_type, exc, tb) -> None:
    self.close()

End-to-end test (test_struct_demo.py) builds input through the user API, calls transform, and checks scalars, embedded fields, and ranked pointer output:

inp = InputRecordPy("sensor-A", version=2, origin=(10, 20))
inp.set_corner(0, (0, 0))
inp.set_corner(1, (100, 50))
inp.add_metric(MetricPy("cpu", 80, (1, 2)))
inp.add_metric(MetricPy("io", 90, (5, 6)))
inp.set_weight(0, 10)
inp.set_weight(1, 20)
inp.set_weight(2, 30)
inp.add_tag("critical")
inp.add_metric_ptr(MetricPy("net", 70, (7, 8)))

with transform(inp, scale=1.5, min_weight=20, top_n=2) as out:
    assert out.total_weight == int((10 + 20 + 30) * 1.5)
    assert out.filtered_weights() == [30, 45]
    top = out.top_metrics()
    assert top[0].label == "io"   # highest weight across embedded + pointer metrics

The string values are arbitrary; the test proves each field category round-trips. After the with block, free_output_record has run — do not use out again.

8.9 Demo User API: InputRecordPy and OutputRecordPy

ctypes does not require InputRecordPy, MetricPy, or PointPy. In the demo they are the user API — the surface application code is meant to call. They are not handles; they sit on the user side and use handles internally (InputRecord, keepalive buffers, POINTER(Metric), …) when crossing into C.

  • InputRecordPy: methods like add_metric, set_weight, add_tag build logical input. to_ctypes() (inside transform) assembles the InputRecord handle and keepalive list — callers never see those objects.
  • OutputRecordPy: methods like filtered_weights(), top_metrics() read results. close() / the context manager calls free_output_record on the internal OutputRecord handle.
inp = InputRecordPy("sensor-A", version=2, origin=(10, 20))
inp.add_metric(MetricPy("cpu", 80, (1, 2)))
# inp: user API — no InputRecord or keepalive visible

with transform(inp, scale=1.5, min_weight=20, top_n=2) as out:
    # out: user API — reads results; bindings free C heap on exit
    assert out.filtered_weights() == [30, 45]

Without this user API every caller would assemble _fields_, manage keepalive, pass byref, and call free_output_record themselves — mixing application logic with handle management. The binding module centralizes handle work behind transform() and these classes.

8.10 ctypes Structs vs Hand-Written Extensions vs CFFI

  ctypes Structure CFFI ffi.new (Part III §7.5) Hand-written extension (Part I)
Layout definition Python _fields_ cdef pasted from header C struct + PyTypeObject
User-facing API user API classes (§8.9) over internal handles ffi struct objects native attributes / methods
Pointer / buffer safety manual keepalive manual keepalive C API / object ownership
Build step make for target .so only ABI or API CFFI build setup.py C extension
Callable path _ctypes + libffi _cffi_backend + libffi or generated .so direct C in mymodule.so

Use ctypes struct mirroring when you have a stable C header and an existing shared library and want stdlib-only glue — the techniques in §8.3–8.8 apply regardless of what the structs represent.

Prefer a hand-written extension (Part I) when you need types integrated with Python’s attribute protocol, exceptions, and object identity as first-class module API.

Consider CFFI when you want header-driven layout (cdef) or compile-time checks in API mode; see CFFI struct/array example and Part III §7.5.

8.11 Handles: A Generalized View

Sections §8.3–8.8 are about layout at the FFI boundary. This section names the unifying idea behind capsules, ctypes structs, file descriptors, and keepalive buffers: the handle in computer programming — and how that differs from the user API in §8.9.

What “handle” means

Wikipedia defines a handle as an abstract reference to a resource used when software refers to memory or objects managed by another system (operating system, runtime, C library, …). The key property is separation: something on the user side holds a token; another layer owns or mediates the real resource.

A handle is not the user API itself (InputRecordPy.add_metric is API, not a handle). It is any internal layer that separates the user API from the resource — opaque integer, pointer, capsule, Structure, string buffer address, …:

Handle (examples) Separates user API from Typical form
File descriptor Kernel file / socket object Integer (often opaque index)
FILE * / C FILE OS file representation Pointer or struct
HWND (Windows) Desktop window object Typed pointer / integer ID
Part I PyCapsule struct ComplexConfig * in C heap Python capsule object
ctypes.Structure (InputRecord) C struct layout + field addresses Python Structure instance
create_string_buffer + c_char_p NUL-terminated bytes in Python heap Buffer + pointer wrapper
POINTER(Metric) in keepalive Standalone metric struct address ctypes pointer object

A file descriptor is a handle even though it is “just an int”: its value is interpreted only by the kernel’s file table. A ctypes.Structure is a handle inside the binding module: the user API calls to_ctypes(), not record.metrics[i] = … on a raw struct. A PyCapsule is a handle because Python cannot inspect the C struct inside; only the extension dereferences it.

User API vs handles

  User API Handle
Who uses it Application / test code Binding code (module-internal)
Demo examples InputRecordPy, transform(), out.filtered_weights() InputRecord, keepalive list, OutputRecord on self._record
Role Express intent (add_metric("cpu", 80, …)) Mediate access to C-managed memory
Should leak to callers? yes — that is the public contract no — hide behind user API

Handles can stack below the user API. In the demo:

application code          user API (what you call)
    → InputRecordPy.add_metric(…), transform(inp)
        → InputRecord + keepalive buffers     handles (binding-internal)
        → byref → _ctypes → libffi            handles (runtime FFI)
        → transform_record in libstruct_demo.so   resource (C memory / logic)

OutputRecordPy is user API; the OutputRecord stored on self._record is the handle it holds until free_output_record runs.

Handles vs pointers

Wikipedia contrasts handles with pointers: a pointer is the address of the referent; a handle is an abstraction managed externally. ctypes uses real pointer types (POINTER(Metric)), but they live inside the binding layer. The user API never exposes metric_ptrs[i] — only add_metric_ptr(MetricPy(...)).

Binding responsibilities (behind the user API)

Module-internal code that owns handles typically:

  1. Marshals — fill Structure fields, buffers, pointer() values in to_ctypes().
  2. Unmarshals — decode c_char arrays and c_char_p in user API methods.
  3. Manages lifetime — keepalive through the C call; free_output_record in OutputRecordPy.close():
class OutputRecordPy:
    def __init__(self, record: OutputRecord):
        self._record = record  # handle to C-backed output struct
        self._closed = False

    def close(self) -> None:
        if self._closed:
            return
        _lib.free_output_record(ctypes.byref(self._record))
        self._closed = True

Users call out.filtered_weights(); they do not call free_output_record — that is handle management inside the binding.

Same idea across this article series

Part User API (examples) Handle (examples) Resource
OS read(fd, …) file descriptor kernel file object
Part I §2.1 process_config(capsule) PyCapsule C ComplexConfig *
Part III §7.2 lib.add(2, 3) _FuncPtr / CDLL binding add in libadd.so
Part IV demo InputRecordPy, transform() InputRecord, keepalive C structs in libstruct_demo.so

Same structural role for handles: token on the API side, mediator, resource on the other side. The user API is whichever functions and classes you publish; handles stay internal unless you deliberately expose low-level access.

Practical guidance

  • Keep ctypes Structure subclasses module-internal — they are handles at the FFI boundary.
  • Keep buffers, c_char_p, POINTER(...) inside to_ctypes() / keepalive — also handles.
  • Expose a user API (InputRecordPy, transform, …) that owns handle assembly and cleanup.
  • Handle leaks (Wikipedia) still apply: forgetting out.close() leaves C heap memory allocated, like forgetting close(fd).

transform(inp: InputRecordPy, ...) takes user API on input; inside it builds InputRecord handles and passes byref to C. Callers hold InputRecordPy, not handles.

References
